General | |

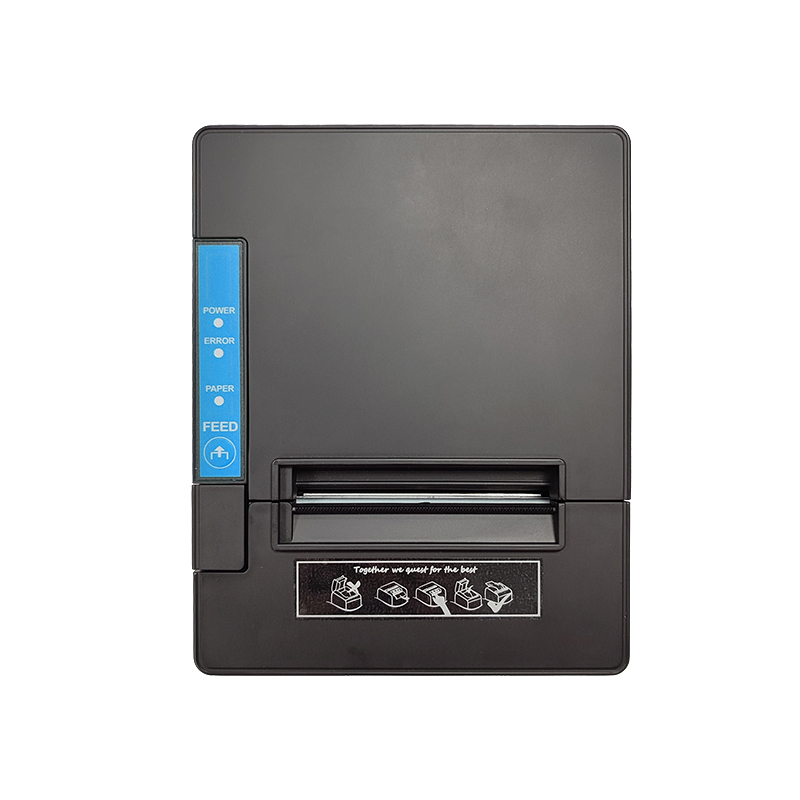

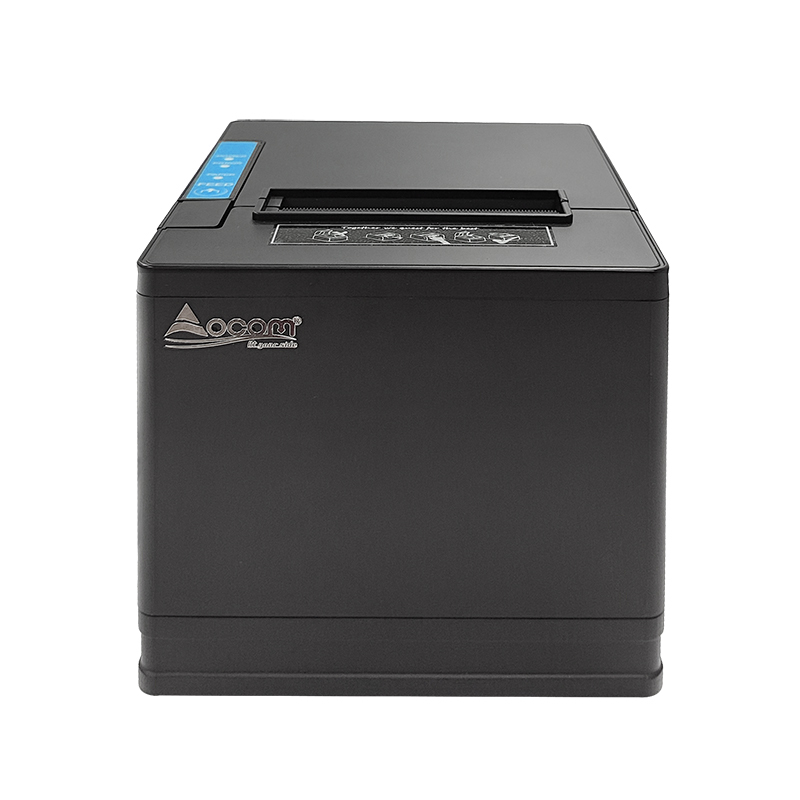

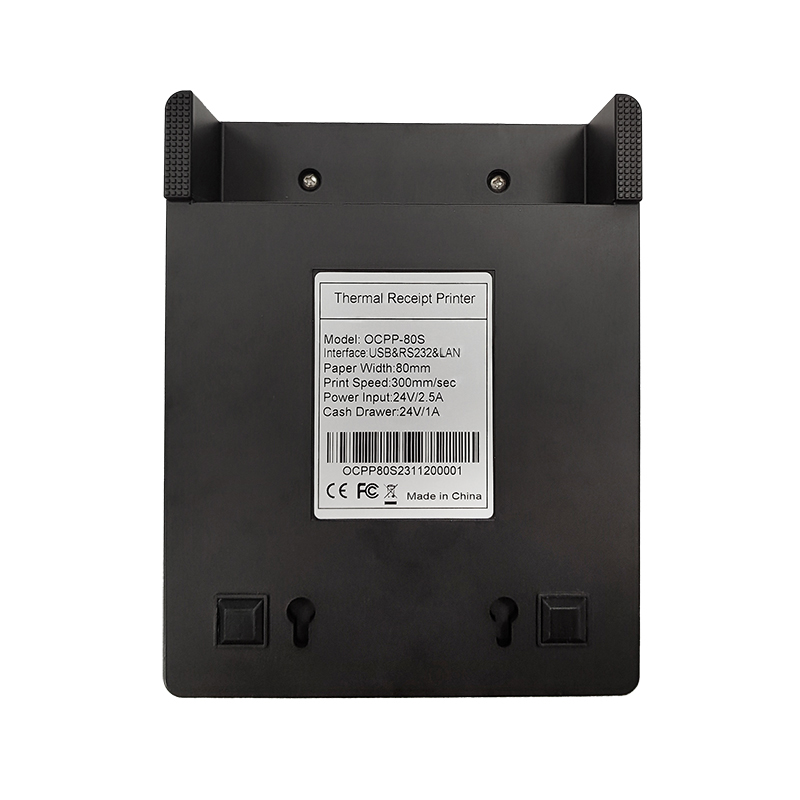

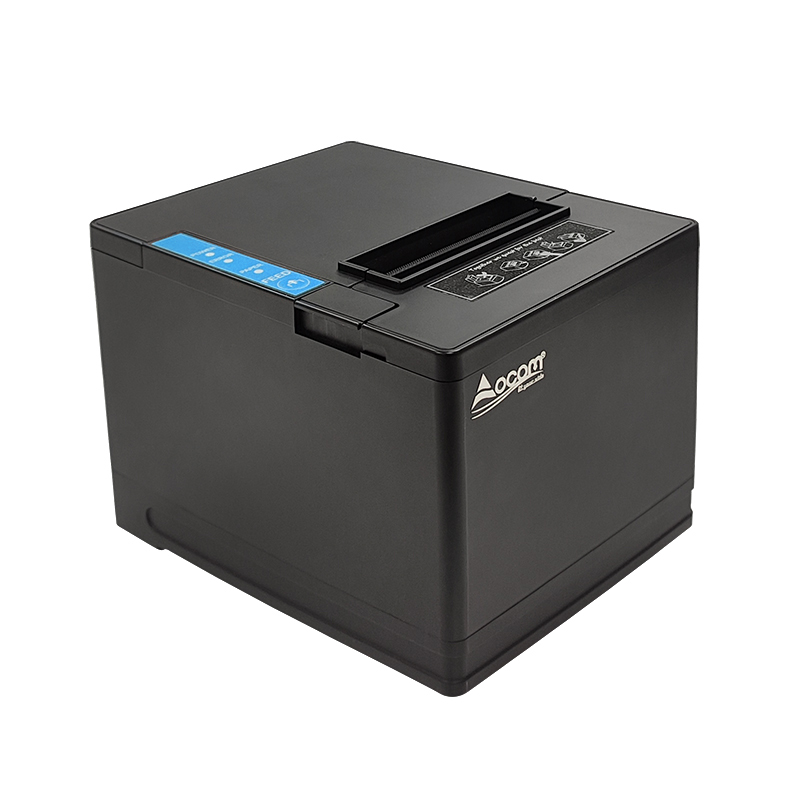

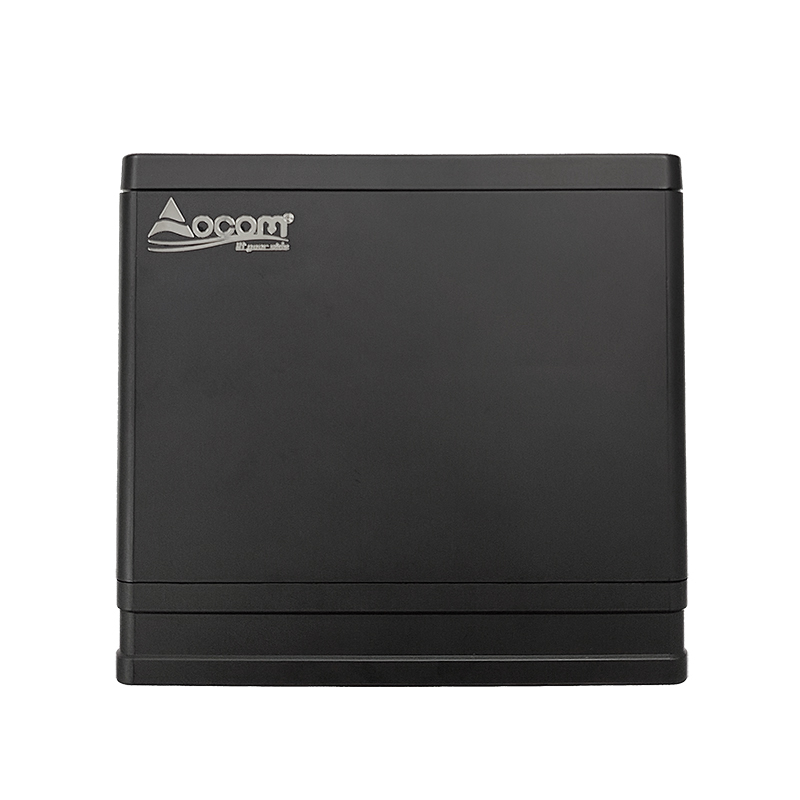

Model | OCPP-80S |
Name | 80mm desktop thermal printer with auto cutter |
Color | Black |

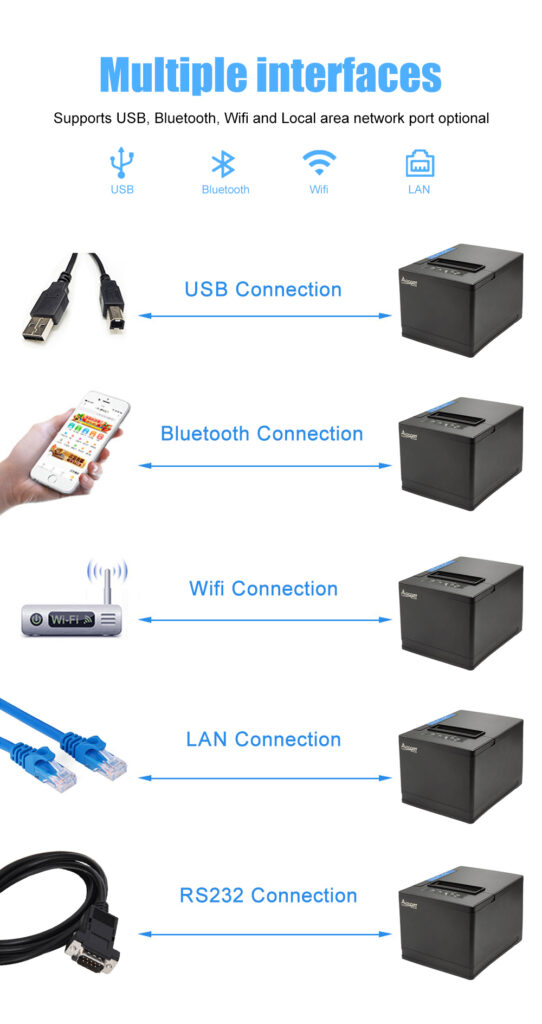

Optional interface | USB/USB+Lan/USB+BT/ USB+WiFi/URL+WIFI/URL+BT |
Power supply | Input：AC 100V-240V,50-60Hz,Output：DC 24V/2.5A |
Cash drawer | DC 24V/1A |

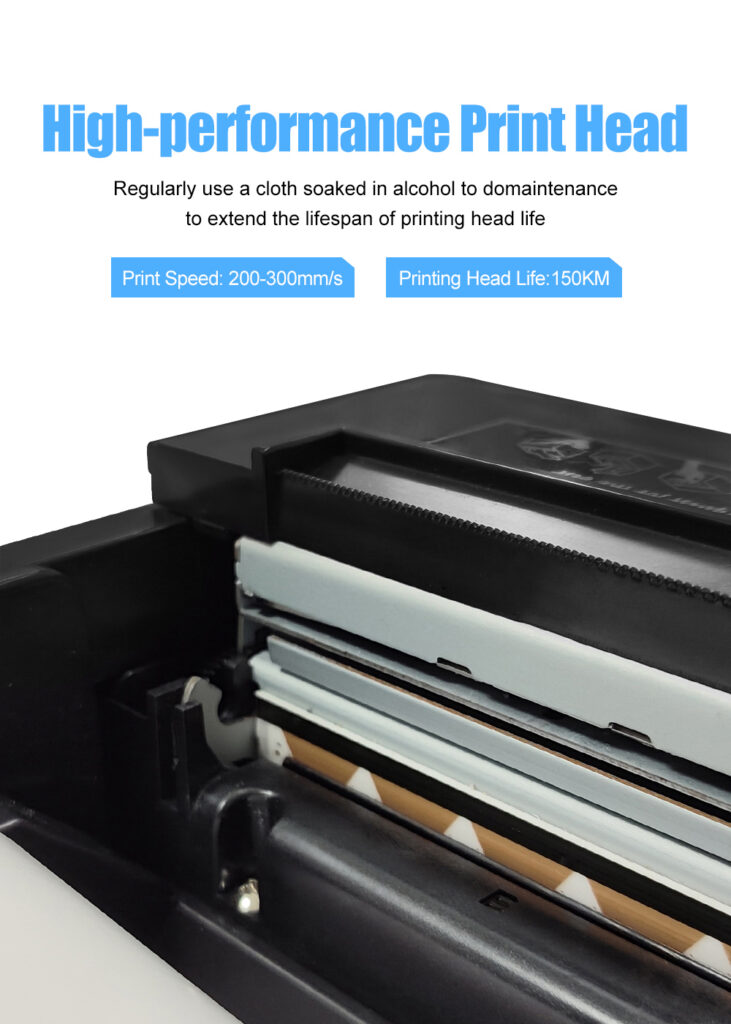

Printer head lifespan | 150KM |
Cutter | Auto cutter |
Sensors | Paper out, cover open, cutter jam,paper jam and black mark detection(Optional) |

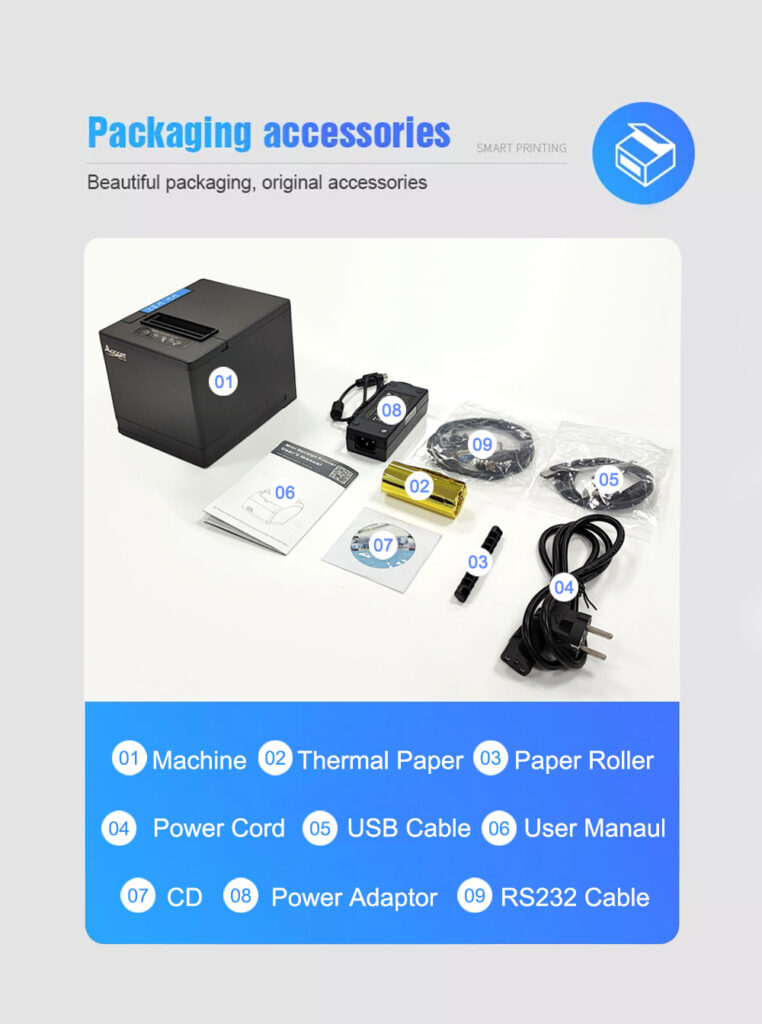

Accessories | Data cable,power adaptor,power cord,paper roller,CD,manual, Paper separator(optional) |
OS supporting | Compatible with iOS/ Android/ Windows/Linux |
Safety standards | CE ,FCC,Rohs etc |
Printing capability | |
Printing method | Direct thermal line |
Resolution | 203 DPI |
Printing speed | 200mm/s (U/UR ) 260mm/s (UL/U+BT/ U+WIFI) 300mm/s (URL/ URL+BT/ URL+WIFI) |
Print width | 72mm |
Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K) |
Printing Command | Compatible with ESC/POS |
Barcode and character | |

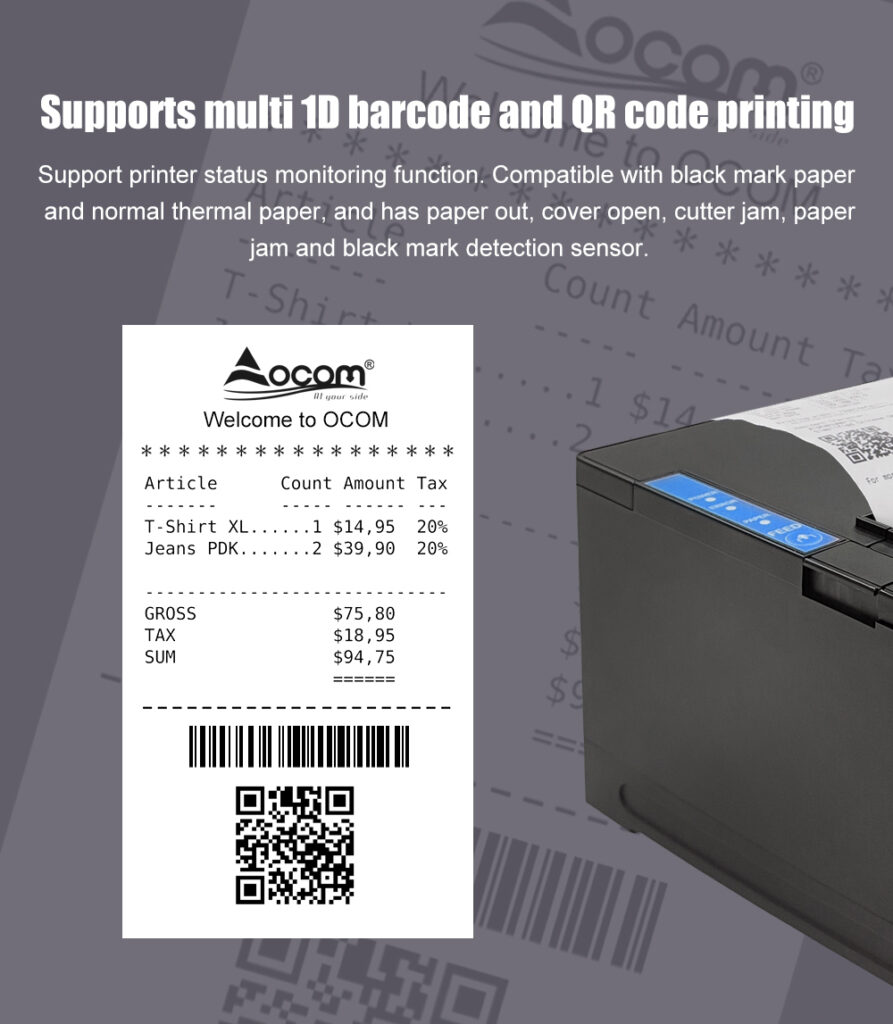

Barcode | 1D barcode: UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/ CODABAR/CODE93/CODE128 2D barcode：QR CODE |
Character size | ANK character, Font: A: 12*24dots, 1.5(W)*3.0(H) mm FontB:9*17dots ,1.1(W)*2.1(H)mm Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm |
| support |
User-defined language | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) |
Media | |

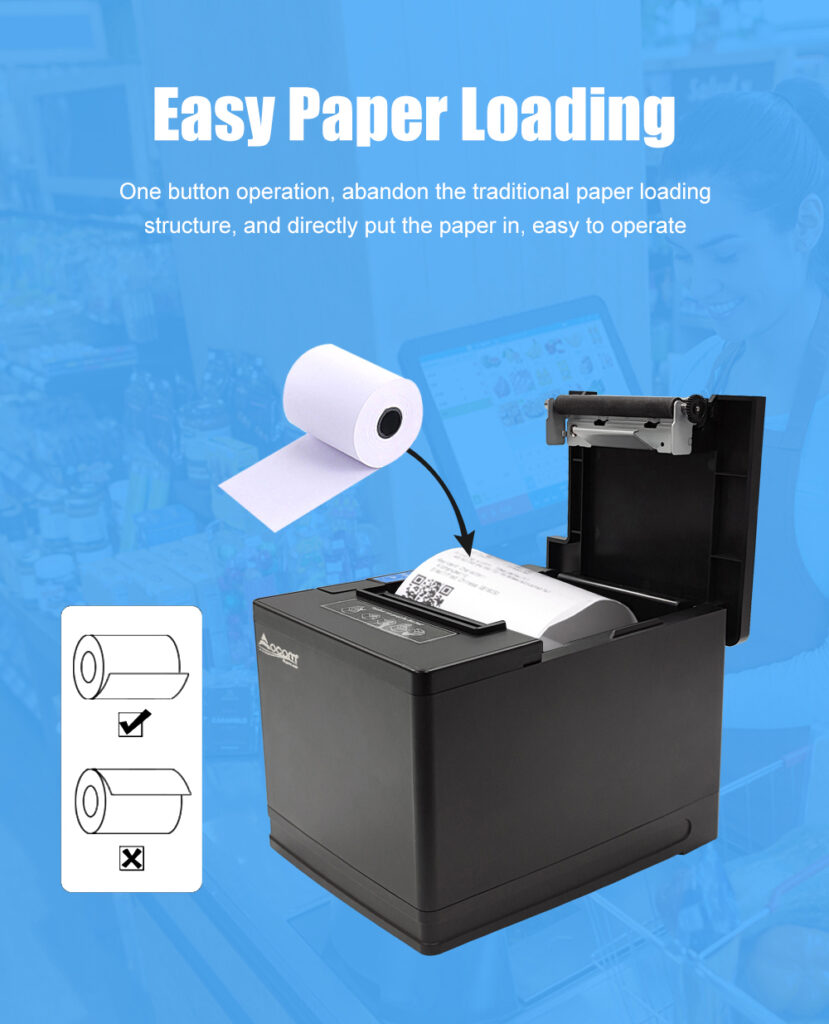

Paper type | Thermal roll paper |
Paper width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm (optional) |
Paper Thickness | 0.06~0.08mm |
Paper roll diameter | 80mm Max |
Paper separator | support |
Physical | |
Dimension | 180*142*136mm |
Weight | 1.65kg |
Package box | 228*215*165mm |
8 in carton | 475*445*358mm/15.65kg |
Environment | |
Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
