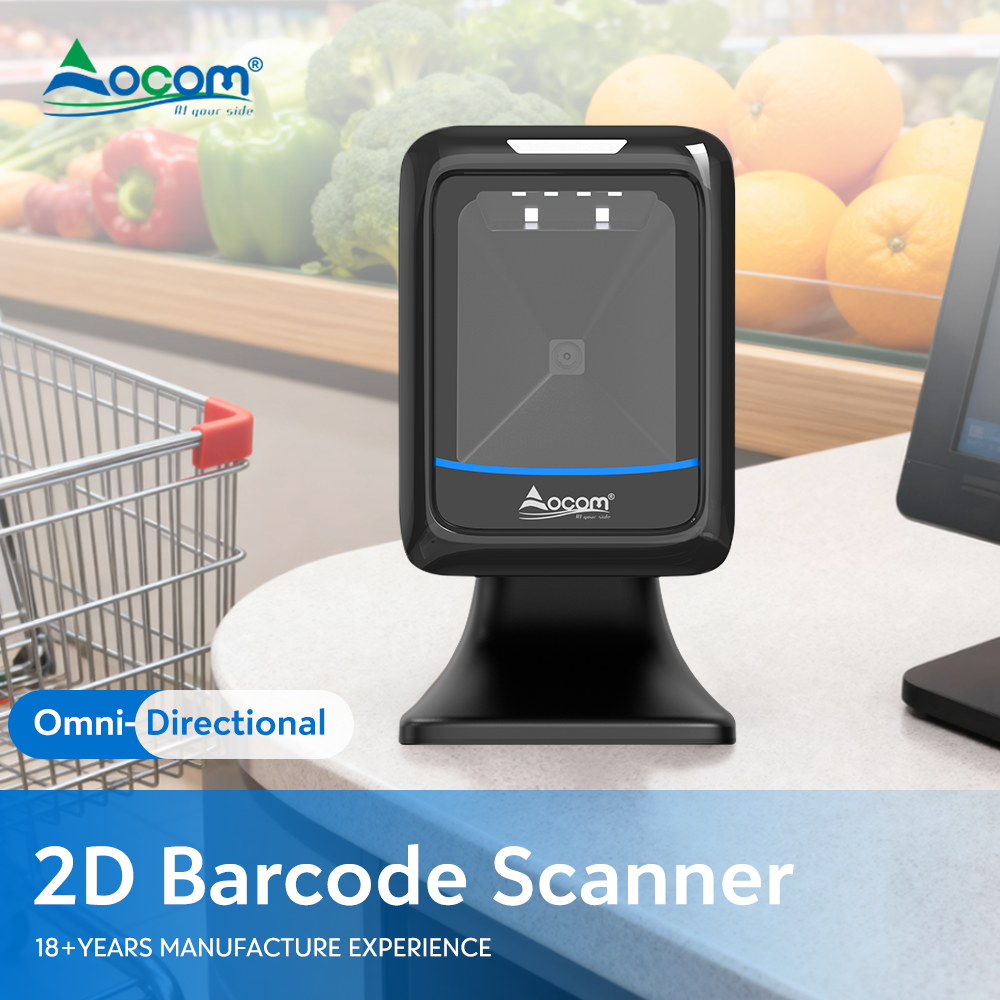

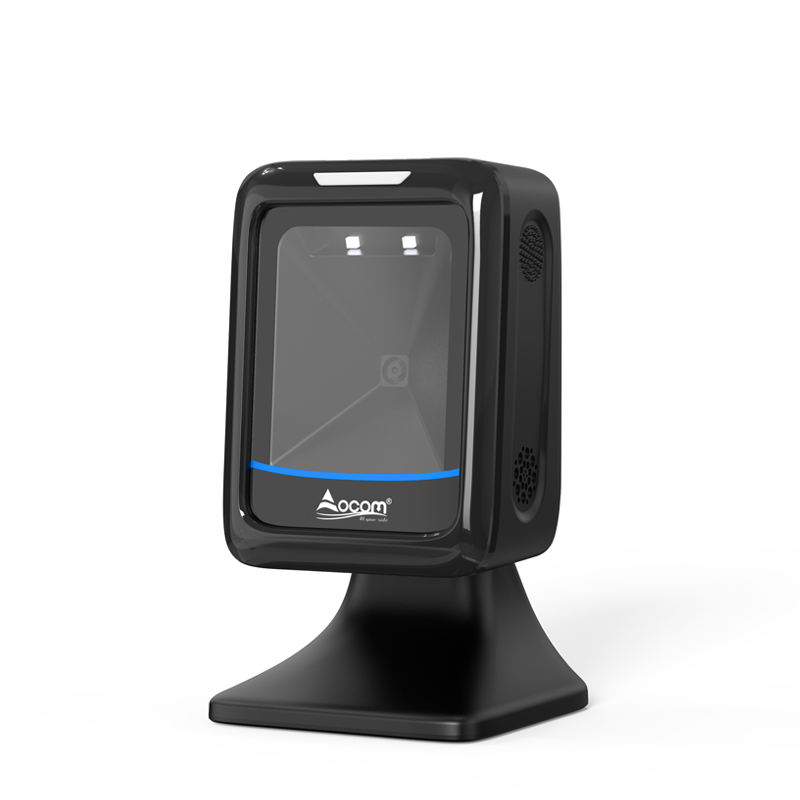

| Model | OCBS-T288 |
| Color | Black |

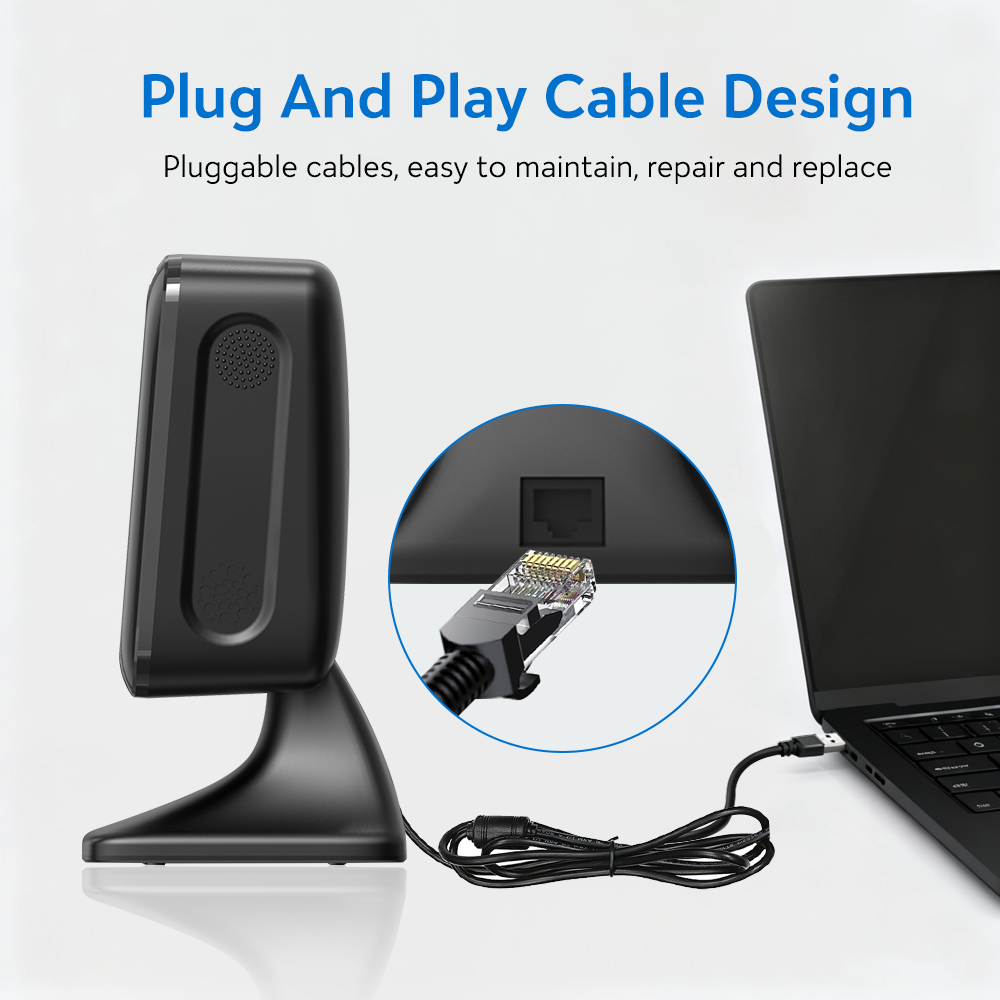

| Interfaces | USB,RS232(customized) |

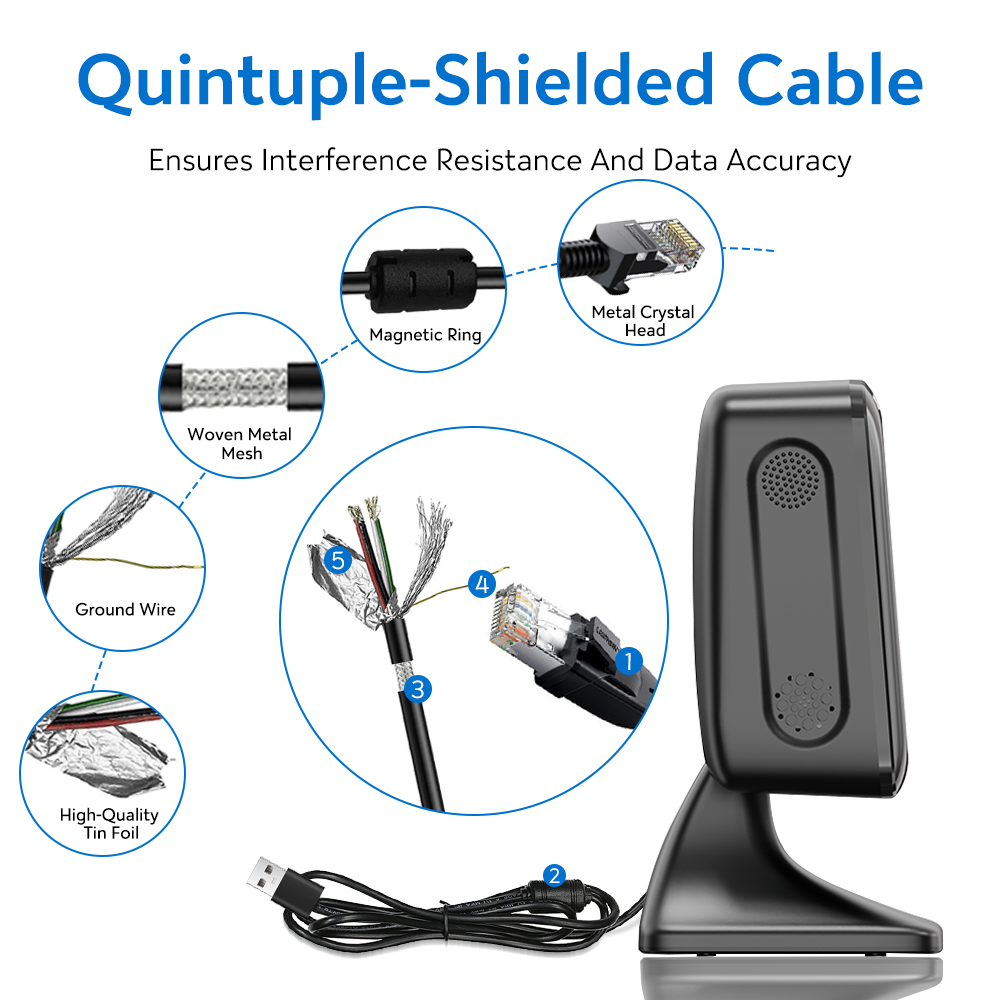

| Cable | 1.8M |
| Reading Indicators | LED/Buzzer |
| Input Voltage | 5 VDC/0.5A |
| Current | 115mA（Working） |
| OS Support | Microsoft Windows/Linux/Android/IOS/MacOS |
| Drop resistance | Withstands repeated drops from 1.5m/4.0 ft onto a concrete surface |

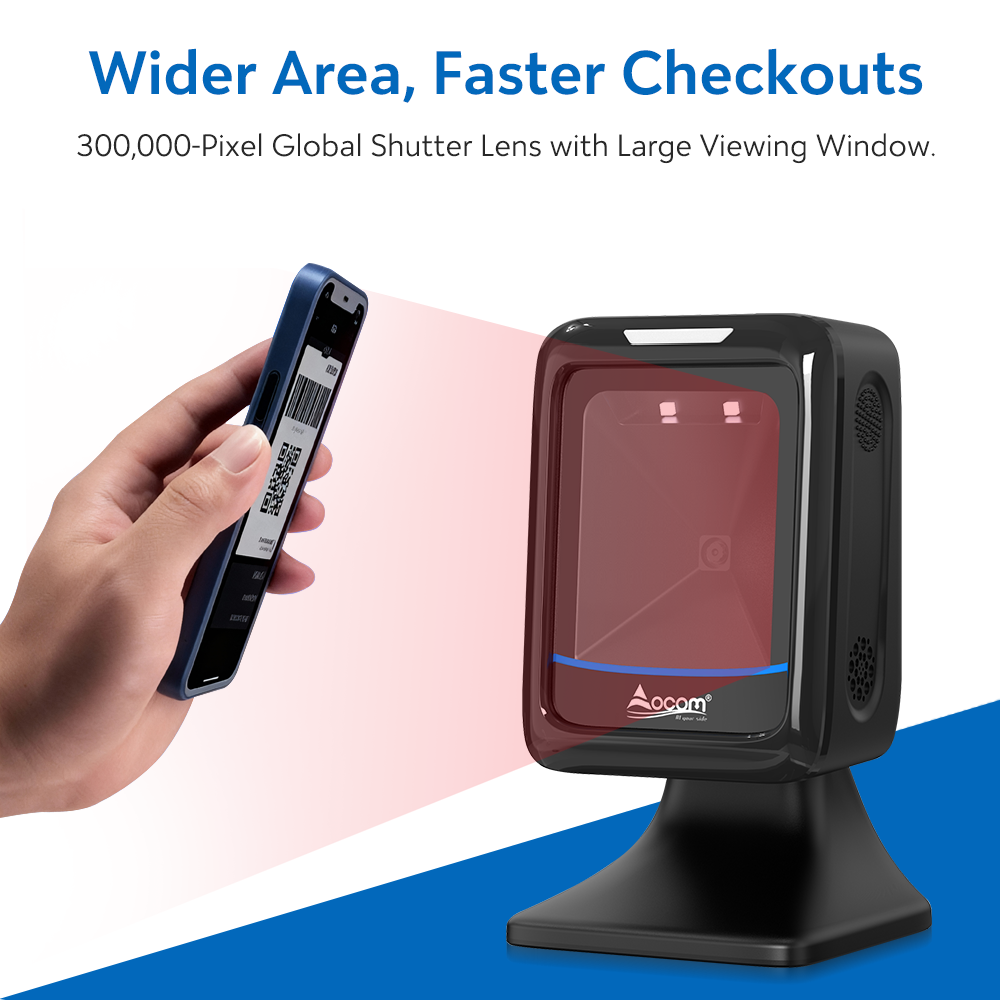

| Sensor | CMOS global shutter |
| Pixel | 300,000(640*480) |
| Reading Precision | ≥4mil（PCS90%,CODE 39） |
| Depth of Field | 10mm~250mm（Different bar code range） |
| Decoding Speed | 65CM/S |
| Illumination | Red LED |
| Scanning mode | Auto,continuous,command ( USB COM or RS232) |
| Reading Angle | Roll:±360°,Pitch:±65,Skew:±60°(Test ConditionsCODE39,10mil/0.25mm,PCS90%) |
| Print contrast ratio | ≥15% |
| Ambient Illumination | Dark Environment，Indoor Natural Light |
| Precision Barcode Depth of Filed |
| 4mil CODE39 40mm—70mm |
| 10mil CODE39 10mm—130mm |
| 13mil UPC/EAN 10mm—160mm |
| 20mil QR code 10mm—150mm |
| etc…..(The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
| 1D：UPC-A,UPC-E,EAN-8,EAN-13,ISBN,ISSN,Code 128, GS1-128,ISBT, Code 39,Code 32, Code 93,Code 11,Codabar（NW-7）,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Standard 2 of 5（IATA 2 of 5）,NEC 2of 5, MSI,Telepen, Trioptic,BC412 ,Coupon. |
| 2D: QR Code,Micro QR Code,Data Matrix,PDF417,Micro PDF 417, MaxiCode,Aztec,HanXin Code,Pharma Code(One-Track),Codablock A,Codablock F, Dot Code, Grid Matrix, etc. |
| Other composite code：GS1 Databar(Omnidirectional, Limited, Expanded),GS1 Composite Code, TLC 39 Code. Chinese ID Card OCR , etc. |
| Postal code：HongKong 2 of 5(China Post), Korea Post, Australian Post, British Post, USPS Intelligent Mail, Japanese Post, Planet Code, Postnet Code, UPU 4-State, KIX Code |
| Weight | Gross:350g |
| Package | 205*130*100mm |
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation |
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
