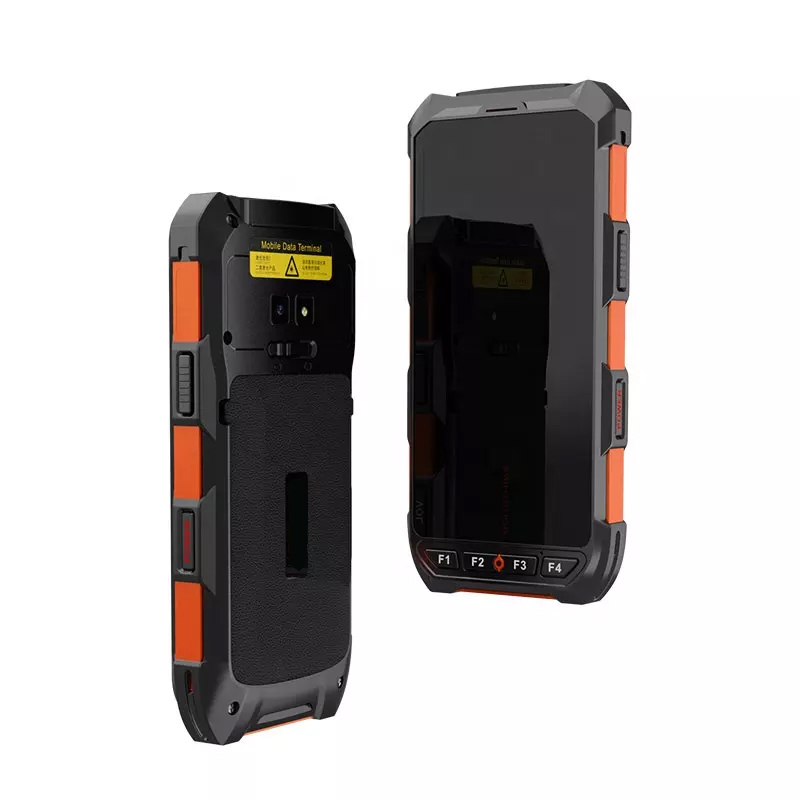

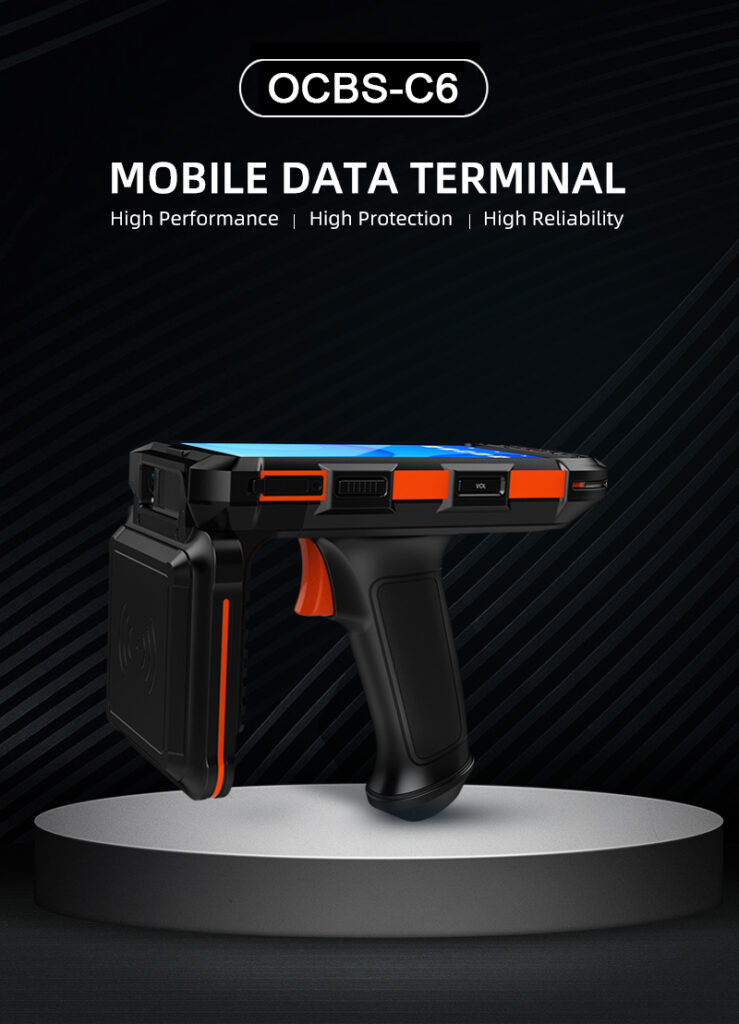

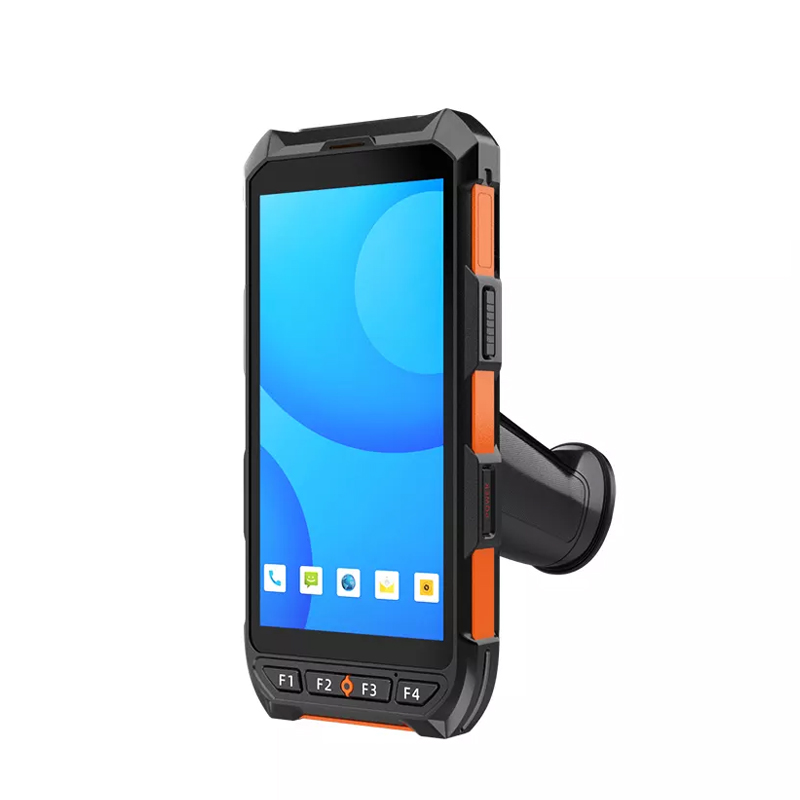

OCBS-C6

OCBS-C6
OCBS-C6 - Image 2
OCBS-C6 - Image 3
OCBS-C6 - Image 4
OCBS-C6 - Image 5
OCBS-C6 - Image 6

OCBS-C6

Category
  • High Speed Data Communication

Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the real-time data communication in different using environment

  • Extremely Stable Hardware Display

5.5 inch Gorilla Glass 3 9H screen can ensure the performance under different tough environment

  • Highly Customized Structure

‘All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements

Get a quote

ltra-High Performance & Latest OS

Android 13.0 with Octa-Core processor and 4GB RAM/64GB ROM for a standard-setting experience

Rugged Durability, Gorilla Glass Display

5.5-inch Gorilla Glass 3 9H screen ensures superior performance in tough industrial environments

Efficient Quick-Charging Technology

Supports quick-charging technology to provide the most efficient user experience and minimize downtim

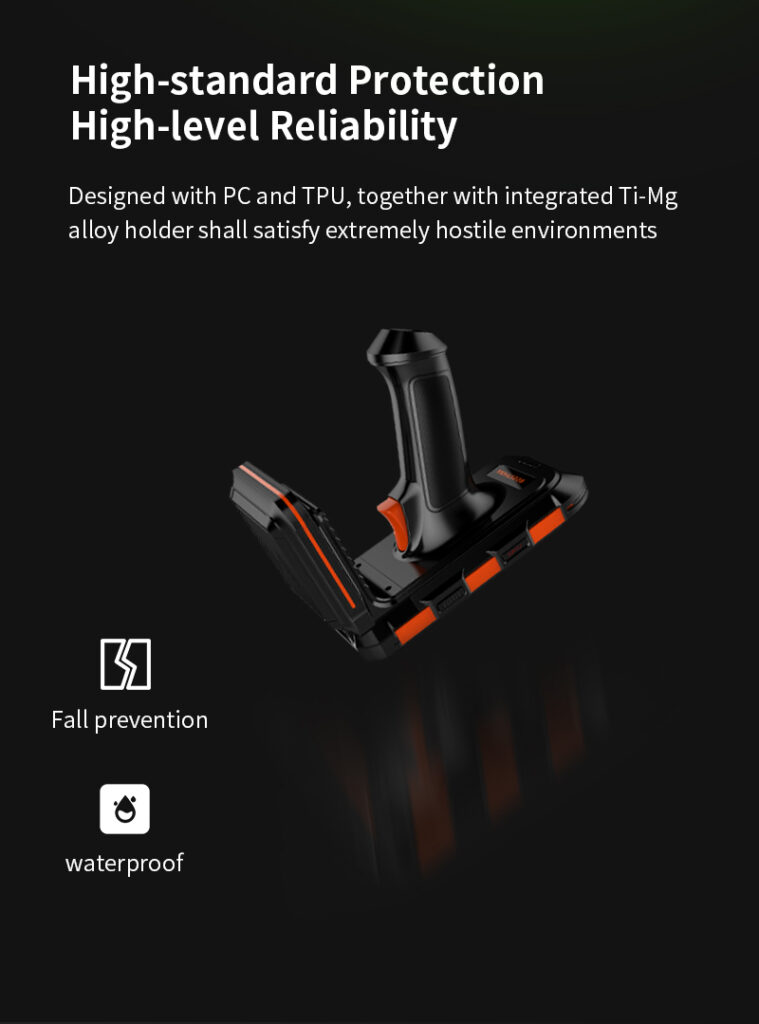

Industrial-Grade Protection & Design

IP65 water/dust seal and 1.5m drop resistance with an ergonomic over-molding construction

Versatile Integration, Modular Design

13MP rear auto-focus camera with LED flash and optional NFC reader for All-in-One functionality

PHYSICAL CHARACTERISTICS
Dimension170.8mm(H)x81mm(W)x20.4mm(D)±2 mm
WeightNet Weight :380g (including battery&wrist strap),Gross Weight:450g
Machine package200*140*90mm
20 in 1 carton420*450*300mm/11.6kg for machine
Cradle package180*135*70mm/368g

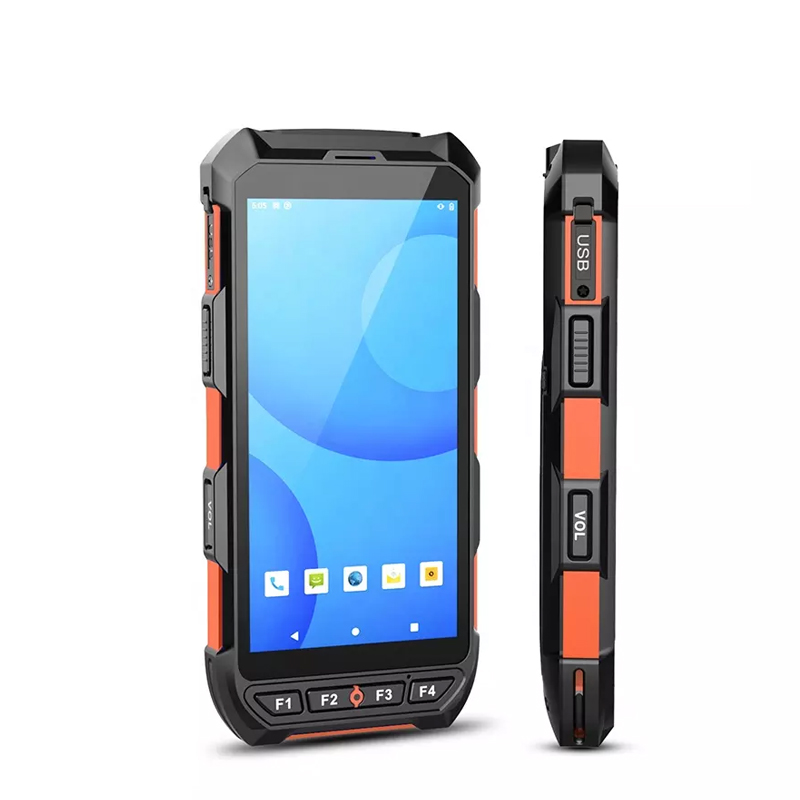

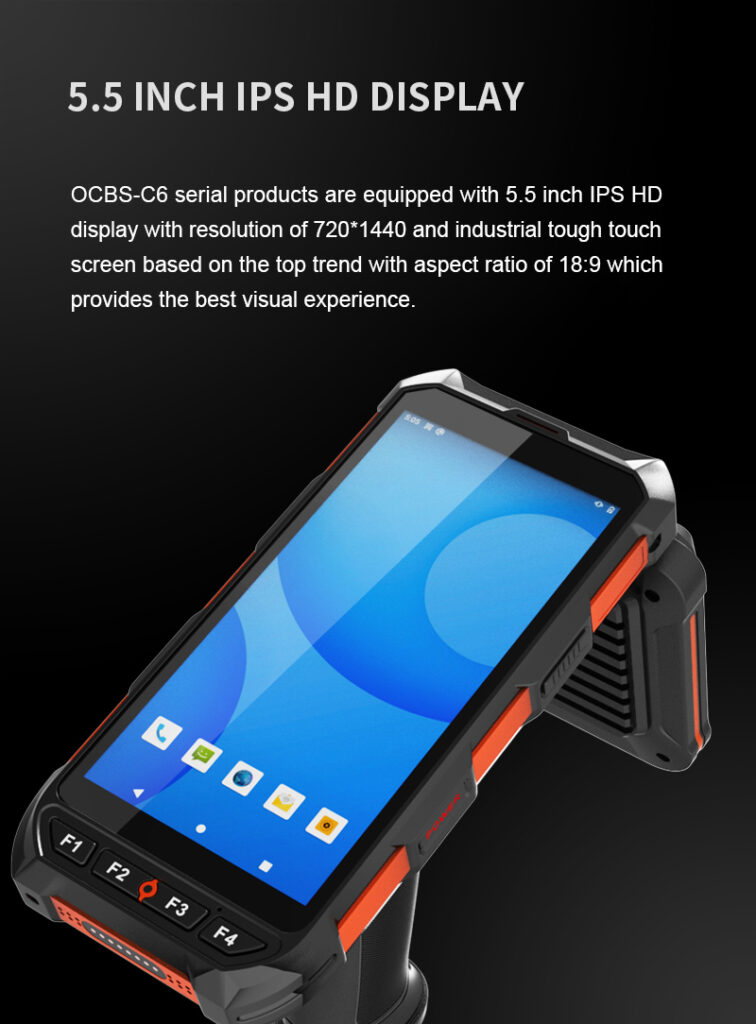

DisplayTough 5.5 inch TFT-LCD(720×1440)touch screen with backlight
BacklightLED backlight
Keypads3 TP keys, 4 function keys, 4 side buttons
Expansions2 *PSAM (optional), 1* SIM, 1* TF
BatteryRechargeable li-ion polymer, 3.8V, 4800mAh
PERFORMANCE CHARACTERSTICS
CPUCortex A73 2.0GHz octa-core,MTK6762
Operating SystemAndroid 13.0
Storage4GBRAM, 64GB ROM, Micro SD up to 256GB for option
USER ENVIRONMENT
Operating Temp.-20℃ to 50℃
Storage Temp.-20℃ to 70℃
Humidity5%RH to 95%RH(non-condensing)
Drop Specifications5ft./1.5 m drop to concrete across the operating temperature range
SealingIP65, IEC compliance
ESD±15kv air discharge, ±8kv direct discharge
DEVELOPMENT ENVIRONMENT
LanguageJava
EnvironmentAndroid Studio or Eclipse
DATA COMMUNICATION
WWANTDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 5, 7, 8, 12, 17, 20，WCDMA(850/1900/2100MHz)，GSM/GPRS/Edge (850/900/1800/1900MHz);
WLAN2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPANBluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.2
GPSGPS(embedded A-GPS), accuracy of 5 m
DATA CAPTUER

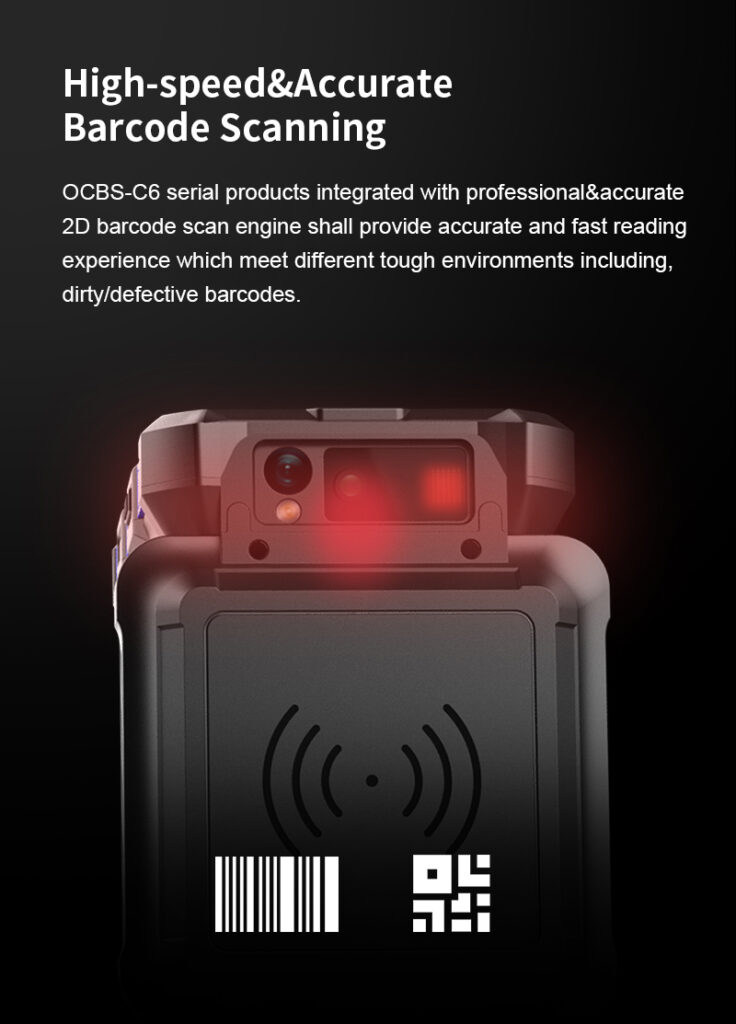

BARCODE READER
2D bar code
Newland NLS 2D Scan Engine(standard) or Honeywell 2D Scan Engine
SymbologiesPDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc
COLOR CAMERA
ResolutionRear 13 megapixel, front 5.0 megapixel
LensAuto-focus with LED flash
RFID READER(OPTIONAL)
RFID NFCFrequency
Protocol
R/W Range		13.56MHz
ISO 14443A&15693, NFC-IP1, NFC-IP2
2cm to 5cm
ACCESSORIES
Standard1xPowerSupply(input:AC100V-240V,50Hz/60Hz,output:DC5V/2A),1xLithiumPolymer Battery,1xUSB data cable

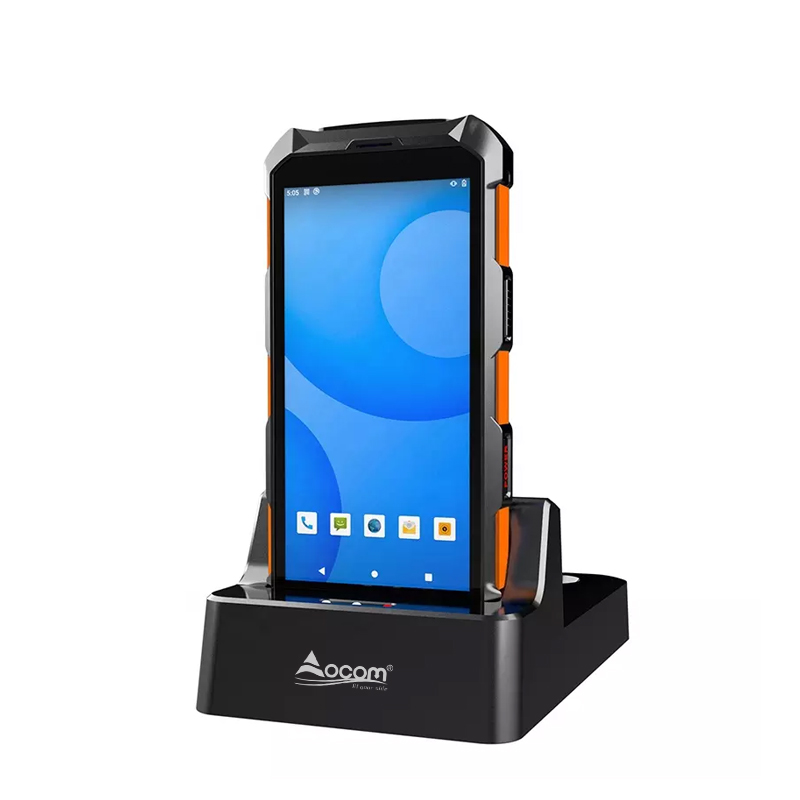

OptionalCradle
