OCBS-T801A
Features:
- Extremely stable performance
- High speed data communication
- Rugged ergonomic over-molding design
- Extremely stable hardware display
- Quick-charging technology provide most efficient experience
- Professional and skillful service involving the whole life cycle guarantee the stability
Vibrant and Tough Display

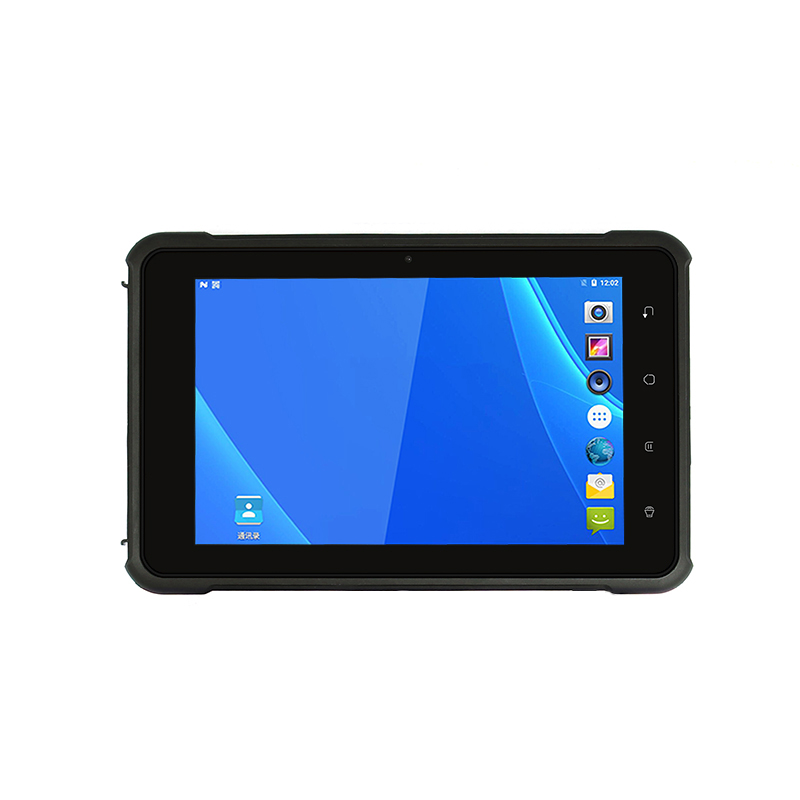

Features an 8.0-inch Gorilla Glass TFT-LCD touch screen for high durability and clear visibility
Industrial-Grade Protection
IP65 water and dust seal rating with a rugged ergonomic over-molding design to satisfy tough environments
Extremely Stable Performance
Powered by a 2.0GHz quad-core MTK6762 CPU with up to 4GB RAM and 64GB ROM for smooth operation
High-Speed Data Communication
Supports 4G high-speed networks and dual-frequency 2.4GHz/5.8GHz Wi-Fi for real-time data exchange
Long-Lasting Battery with Quick Charging
Equipped with a large 8000mAh rechargeable Li-ion battery and quick-charging technology for maximum efficiency
|
Model |
OCBS-T801A |
|
Display |
8.0 inch Gorilla TFT-LCD(800×1440) touch screen |
|
CPU |
MTK6762, 2.0GHz quad-core |
|
Storage |
2GB RAM/16GB ROM,or 4GBRAM/64GB ROM for Option |
|
Extend Slot |
Micro SD*1, support 64GB,2* PSAM, 1 *SIM |
|
Battery |
Rechargeable Li-ion polymer, 3.7V, 8000mAh |
|
Sealing |
IP65, IEC compliance |
|
Resolution |
Front-facing camera 13.0 megapixel 5.0 The rear camera |
|
Lens |
Auto-focus with LED flash |
|
Optional |
2D scanner, RFID reader ,Fingerprint reader |
|
OS |
Android 10 |
|
Wireless connectivity |
|
|
WWAN |
TDD-LTE Band 38, 39, 40, 41; FDD-LTE Band 1, 2, 3, 4, 7,17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
|
WLAN |
2.4GHz/5.8GHz Dual Frequency, IEEE 802.11 a/b/g/n |
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0 |
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
|
Physical Specifications |
|
|
Dimension |
230mm(H)x146mm(W)x20mm(D)±2 mm |
|
Weight |
Net Weight :650g (including battery&wrist strap) |
|
package |
273*188*68mm/1.2kg |
|
Environmental Specifications |
|
|
Operation Temperature |
-20°C ~ +50°C |
|
Storage Temperature |
-20°C ~ +70°C |
|
Humidity |
5%RH to 95%RH(non-condensing) |
|
Drop Specifications |
5ft./1.5 m drop to concrete across the operating temperature range |
|
ESD |
±15kv air discharge, ±8kv direct discharge |
|

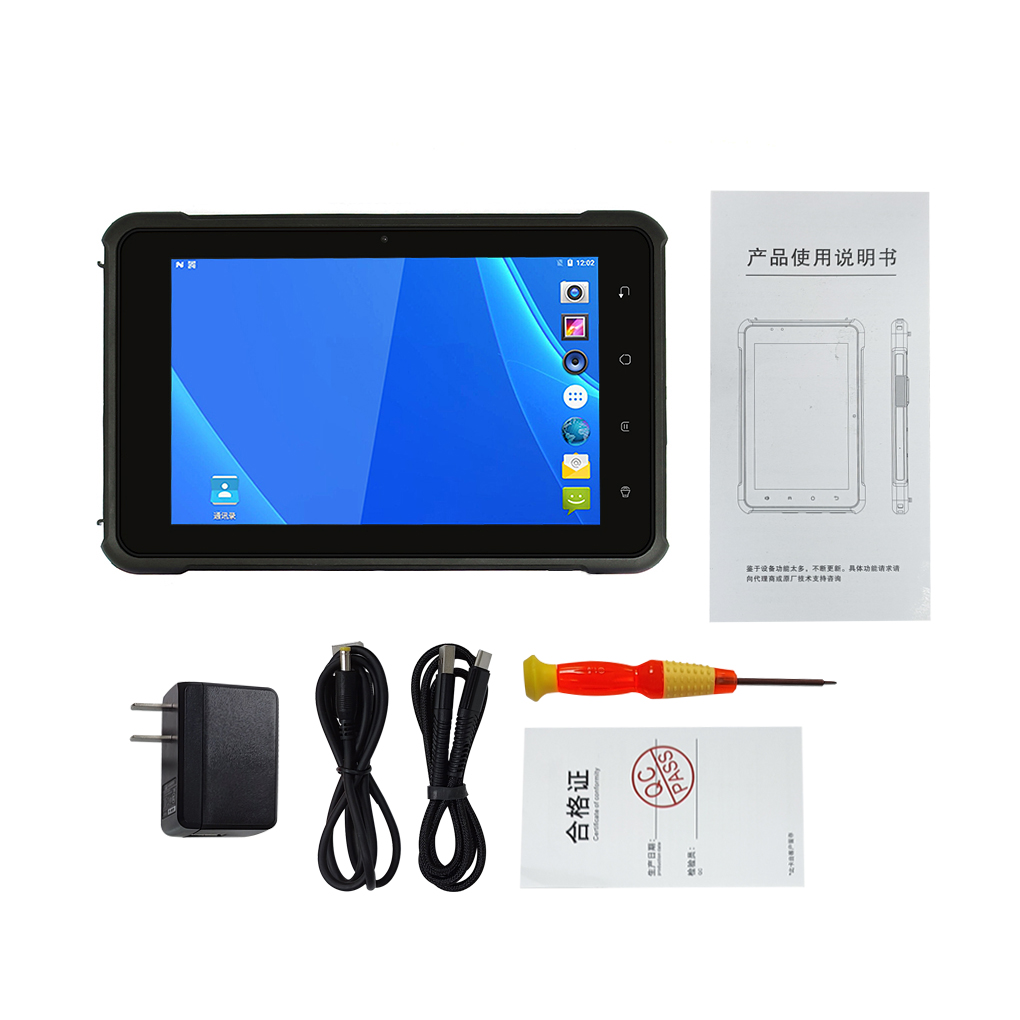

Accessories |
|
|
Standard |
1xPower Supply; 1xLithium Polymer Battery,1xUSB data cable |
|
Optional |
Cradle |
