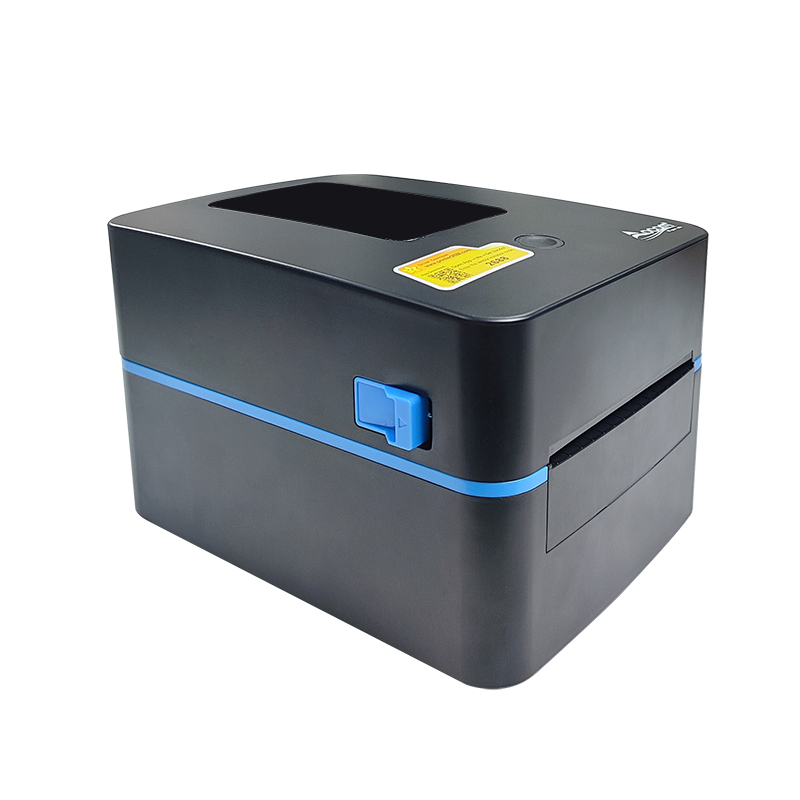

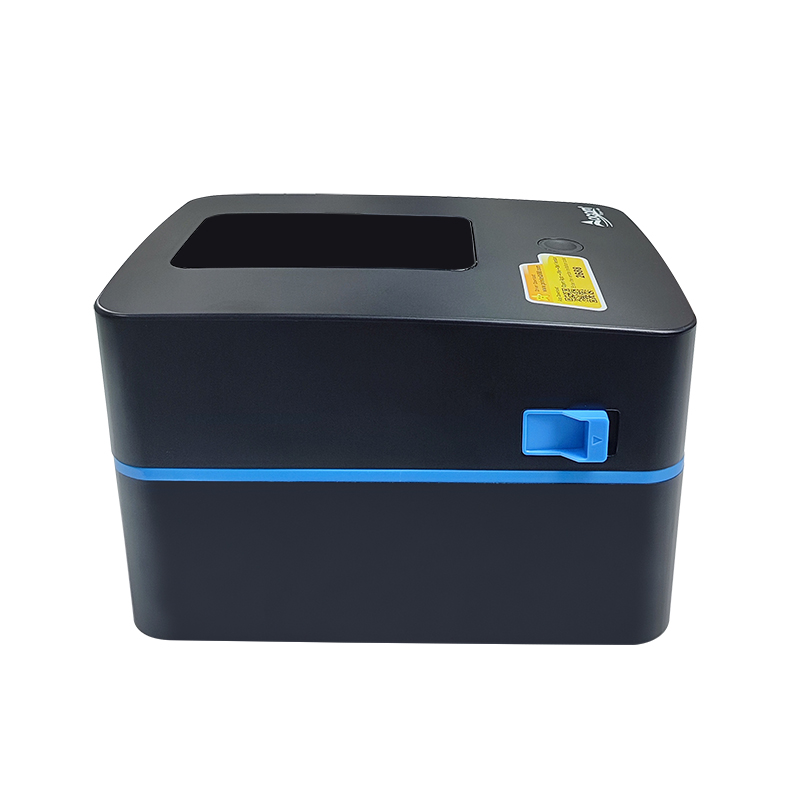

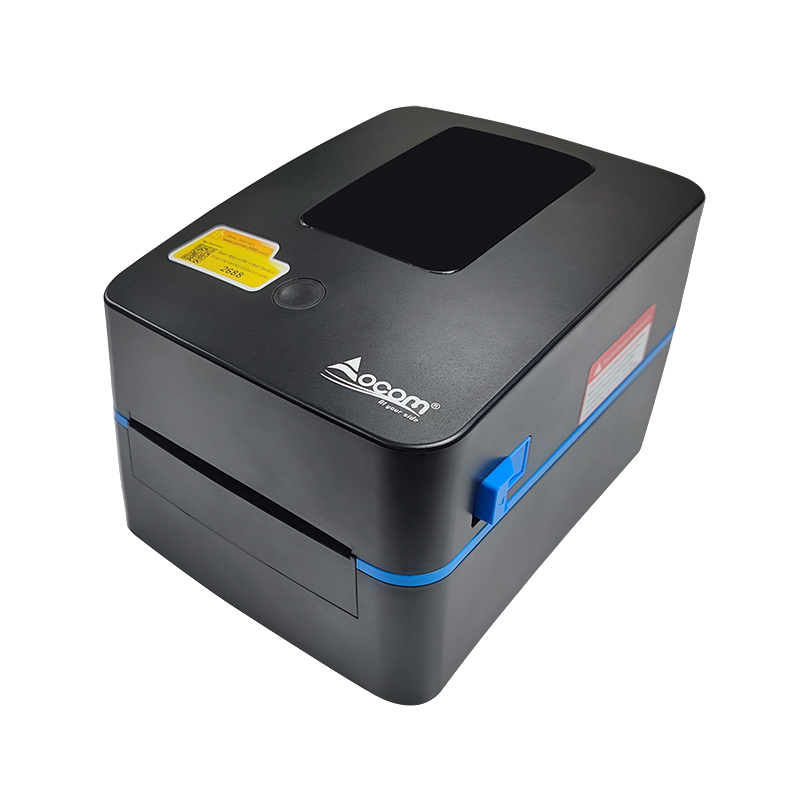

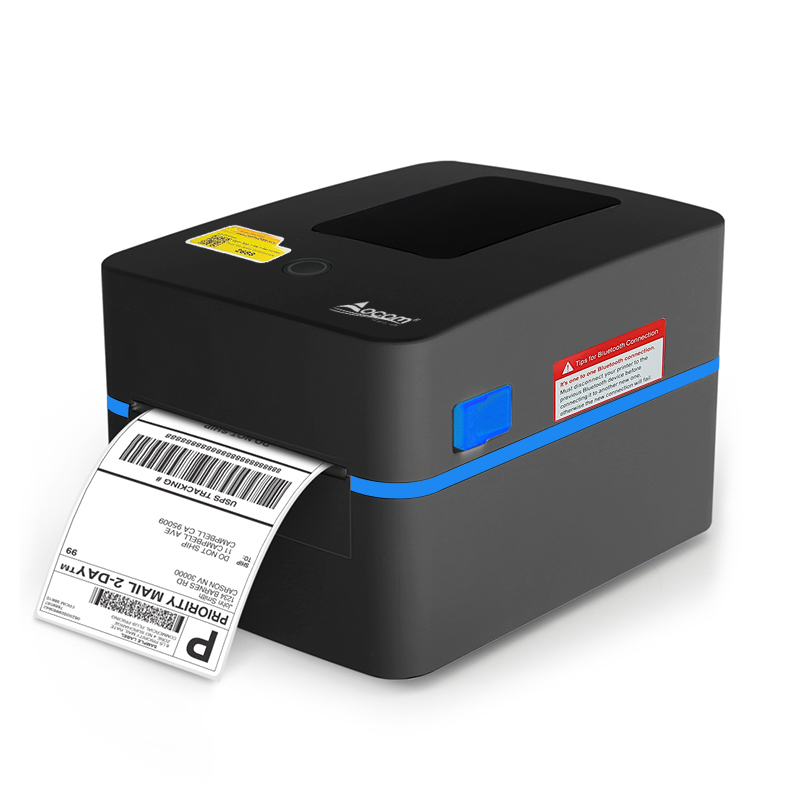

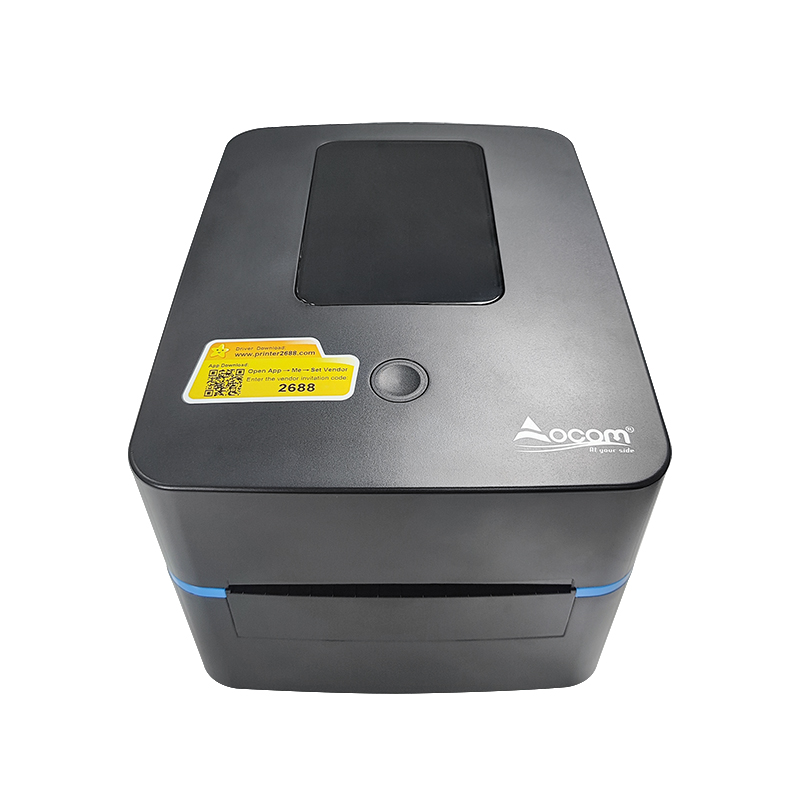

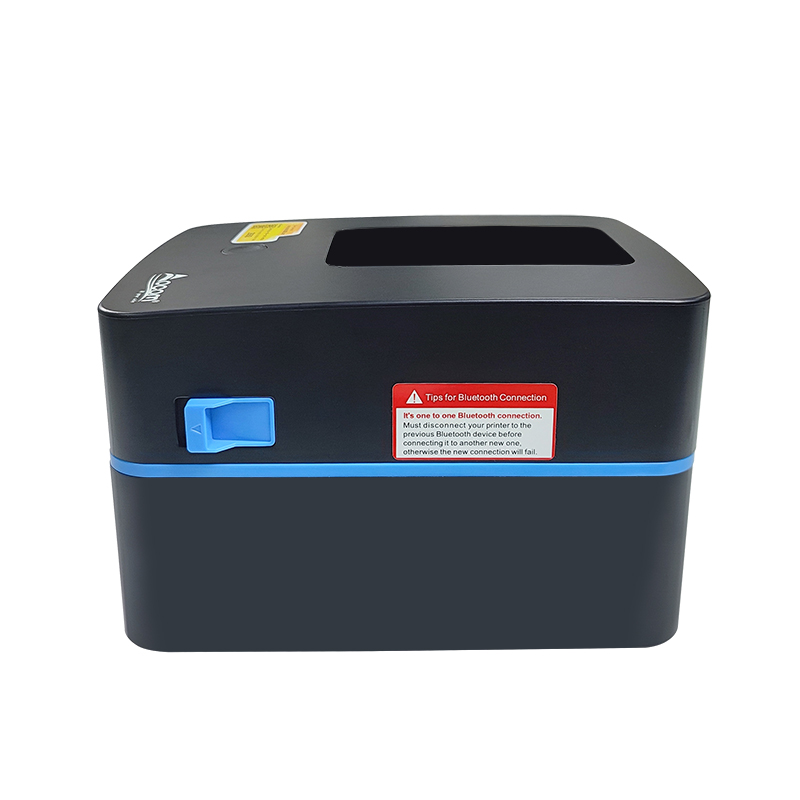

OCBP-401DT

OCBP-401DT
OCBP-401DT - Image 2
OCBP-401DT - Image 3
OCBP-401DT - Image 4
OCBP-401DT - Image 5
OCBP-401DT - Image 6

OCBP-401DT

Category
  • Fashionable Compact Design

Stylish and compact appearance makes it ideal for modern business environments.

  • Convenient Wall Mounting Support

Designed to support wall mounting for saving valuable counter space.

  • Efficient Queue Ticket Printing

Integrated queue ticket function helps manage customer flow effectively.

Get a quote

Broad OS Compatibility & Ink-Free Printing

Direct thermal printing with no ink or ribbon required; fully compatible with Windows, iOS, Android, and Linux

Simplified One-Button Paper Loading

User-friendly one-button operation to directly drop in paper rolls, abandoning traditional complex structures

Ultra-Fast Performance & Industrial Durability

High-speed printing up to 300mm/s with a 150KM long-life professional printer head

Intelligent Barcode Support & Status Monitoring

Supports multi-1D/QR code printing with sensors for paper out, cutter jam, and black mark detection

Comprehensive Versatile Interface Options

Supports a wide range of connection combinations including USB, Bluetooth, WiFi, LAN, and RS232

Complete Original Packaging & Accessories

Includes machine, thermal paper, paper roller, power adapter, and all necessary communication cables

General
Model OCBP-401DT
Material Plastic housing
Optional interface USB,USB+Bluetooth,USB+Bluetooth +WIFI, USB+LAN
Processor 32-bit CPU
Memory 4MB Flash Memory,320KB RAM
Printer Head life 50 KM
Power supply Input：AC 100V-240V,50-60Hz,Output：DC 24V/2.5A
Accessories Power adapter,Power cable,USB cable,Label shaft,Manual
Sensors Label edge detection, Out of paper detection,Gap detection,Black-mark detection,Cover-open detection
Gap height 2mm Min
Black-mark height 2mm Min
Font and bar code rotation 0°,90°,180°,270°
Compatible command TSPL
Printing capability
Printing method Direct Thermal
Resolution 203 DPI
Print speed 152mm/s Max
Print width 20-108mm
Label print length 10-250 mm
Barcode and character
Bar-code 1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST 2D bar code:PDF417, Maxi code, Data Matrix, QR code
Font 8 alpha-numeric bitmap fonts,Windows fonts are downloadable from software
Media
Paper type Folded paper or roll paper, die-cut label, black mark paper
Paper width 20-118mm
Paper thickness 0.06-0.22mm
Label roll capacity 127 mm OD (outside diameter)
Physical
Dimension 232mm*180mm*152mm(LWH)
Weight Net:1.36 kg
Package box 254*254*174mm/1.92Kg
8 in 1 carton 528*528*368mm/15.36kg
Environment
Working temperature& humidity 0 to 45 degrees centigrade, 10%~80% No condensation
Storage temperature& humidity -20 to 50 degrees centigrade , 10%~90% No condensation
