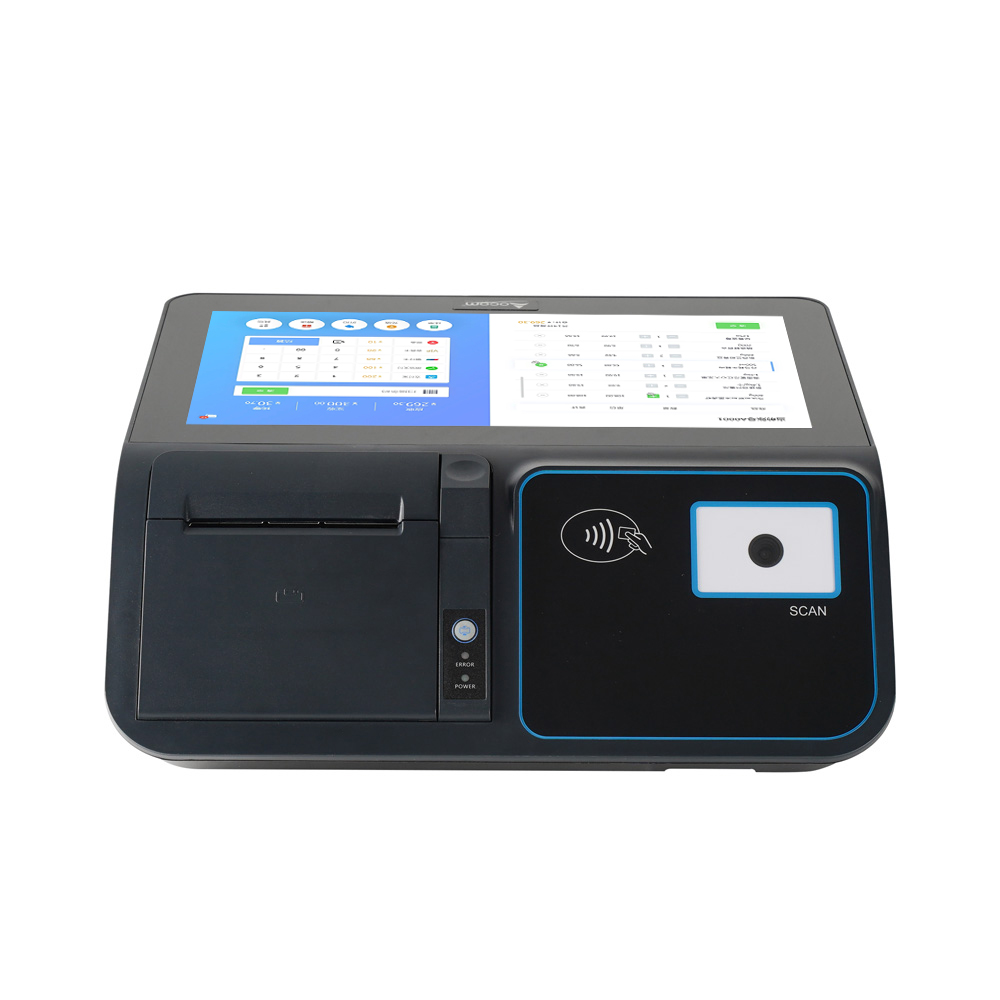

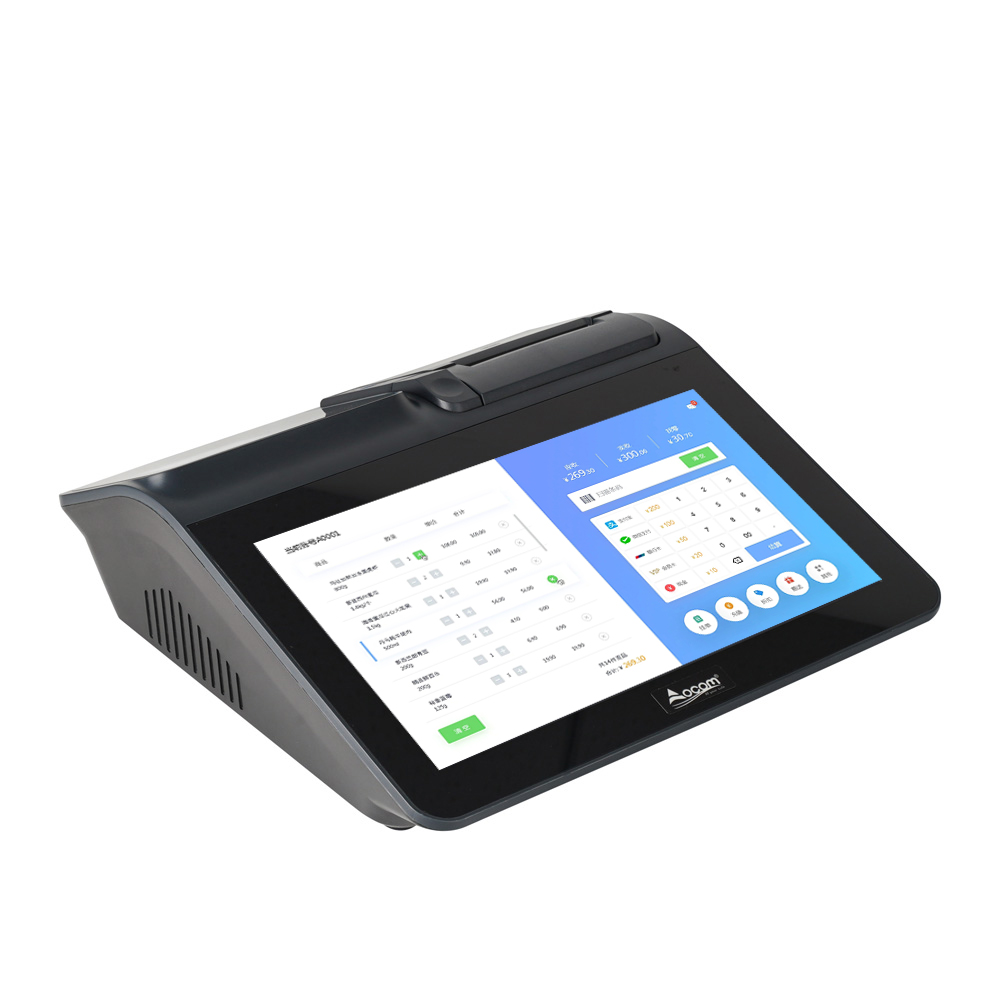

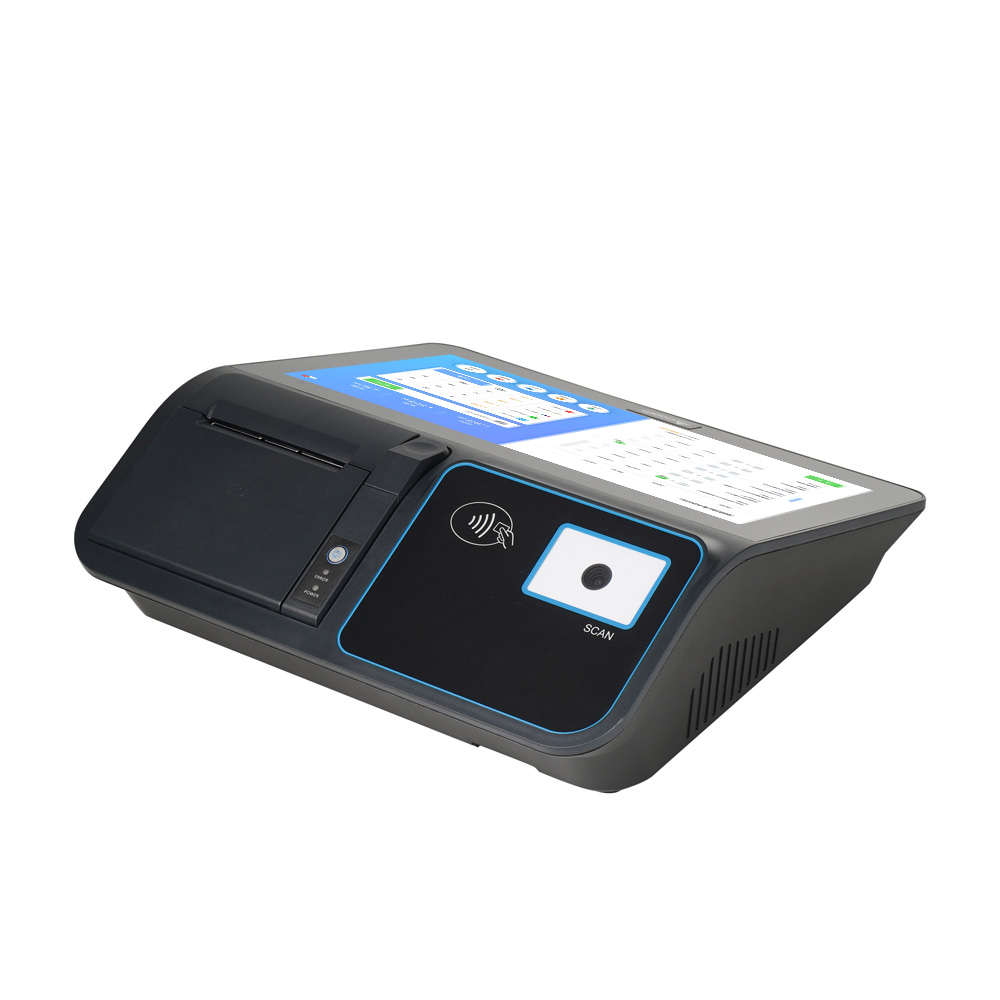

POS-M1106
-
-
- Features:
- Intel Celeron series and Rockchip CPU for option
- Hard Driver Msata SSD 64GB, SSD 128GB and 256 GB for option
- 58mm and 80mm high speed thermal printer built in for option
- Multi-point projected capacitive touch panel
- Optional side MSR and VFD220 customer display
- NFC card reader,bar-code scanner as option
- True flat and water-proof scratch-resistant surface display
- Features:
-

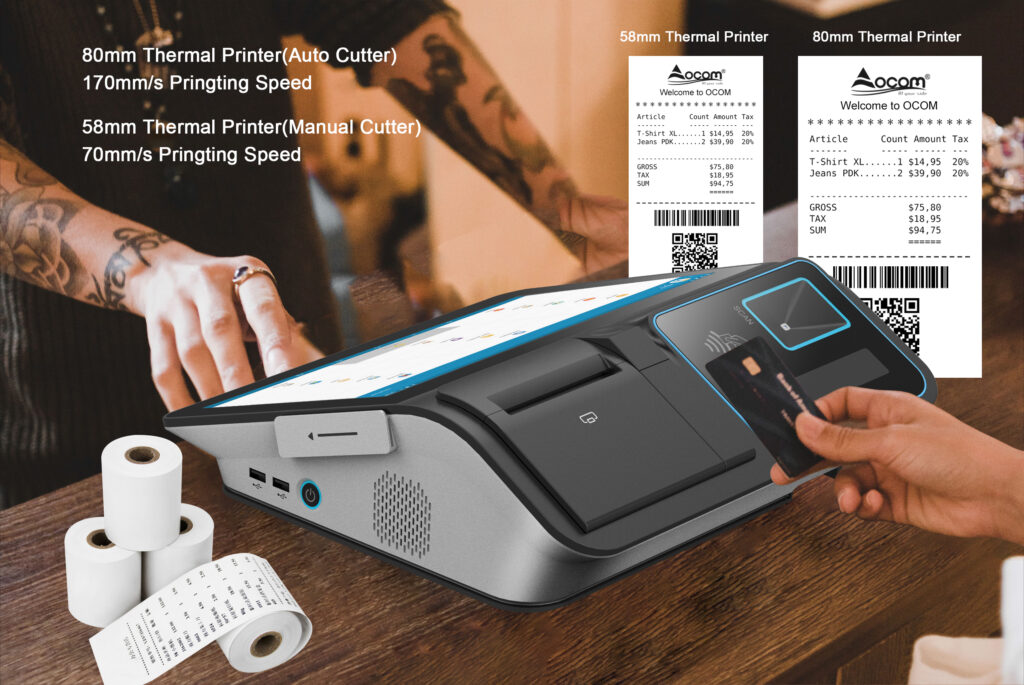

Efficient High-Speed Thermal Printing
80mm Professional Printing
58mm Flexible Option
Heavy-Duty Durability

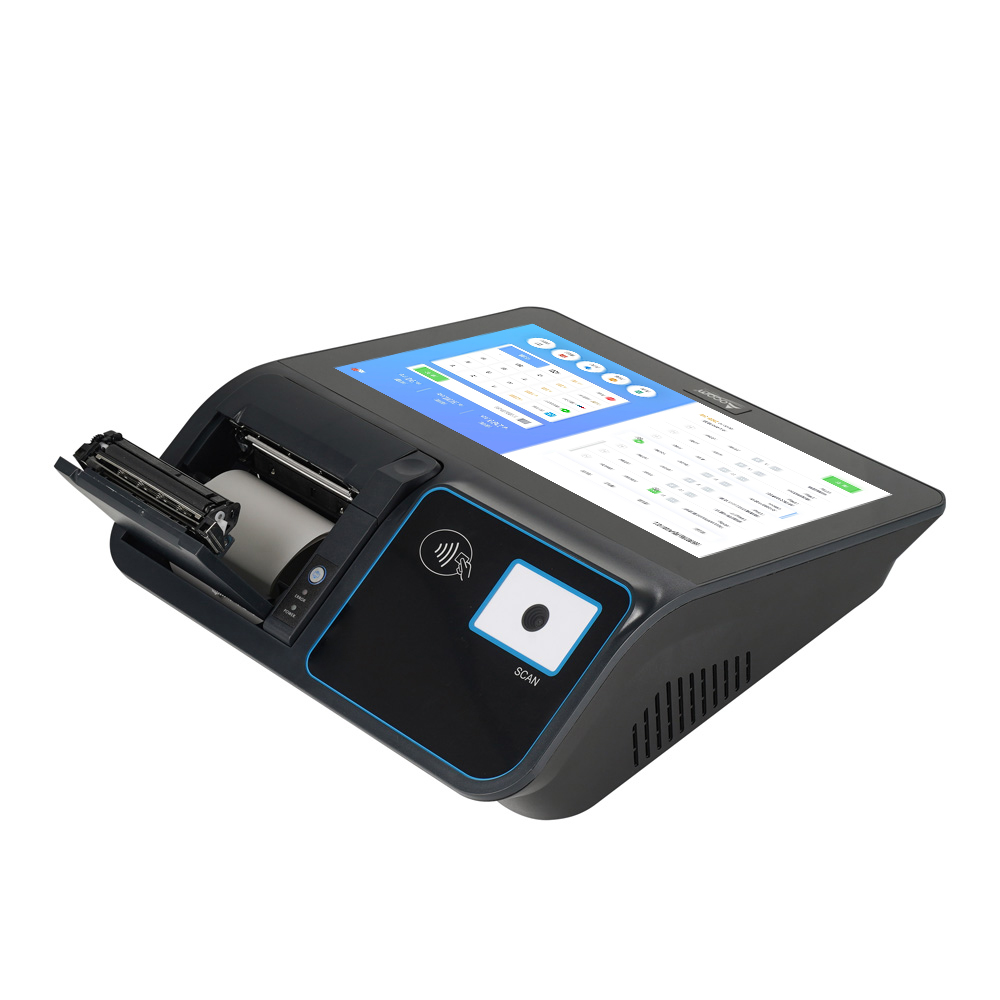

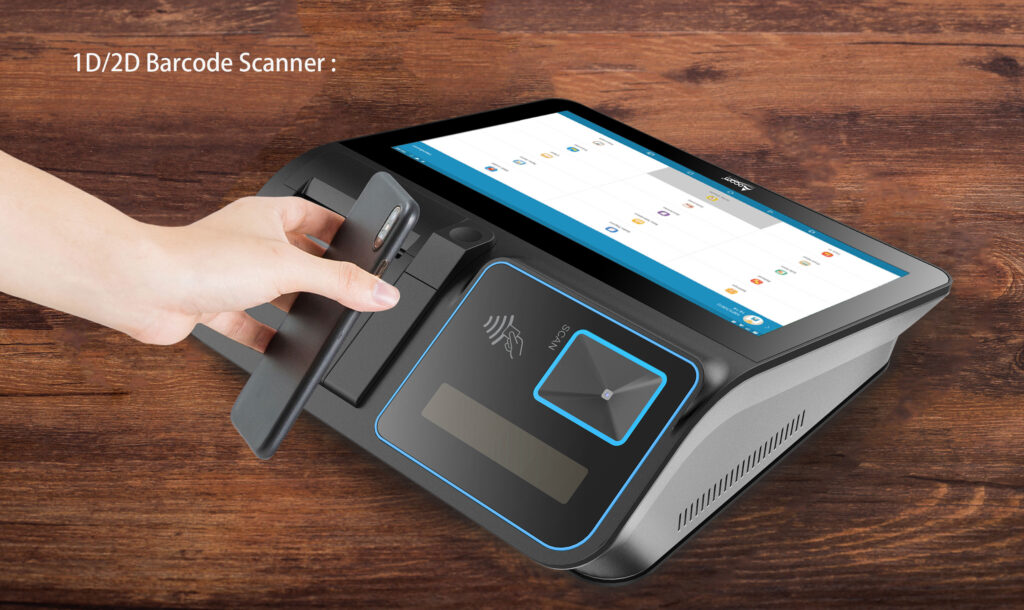

Integrated 1D/2D Barcode Scanning
Optional Scanning Module
Fast Transaction Processing

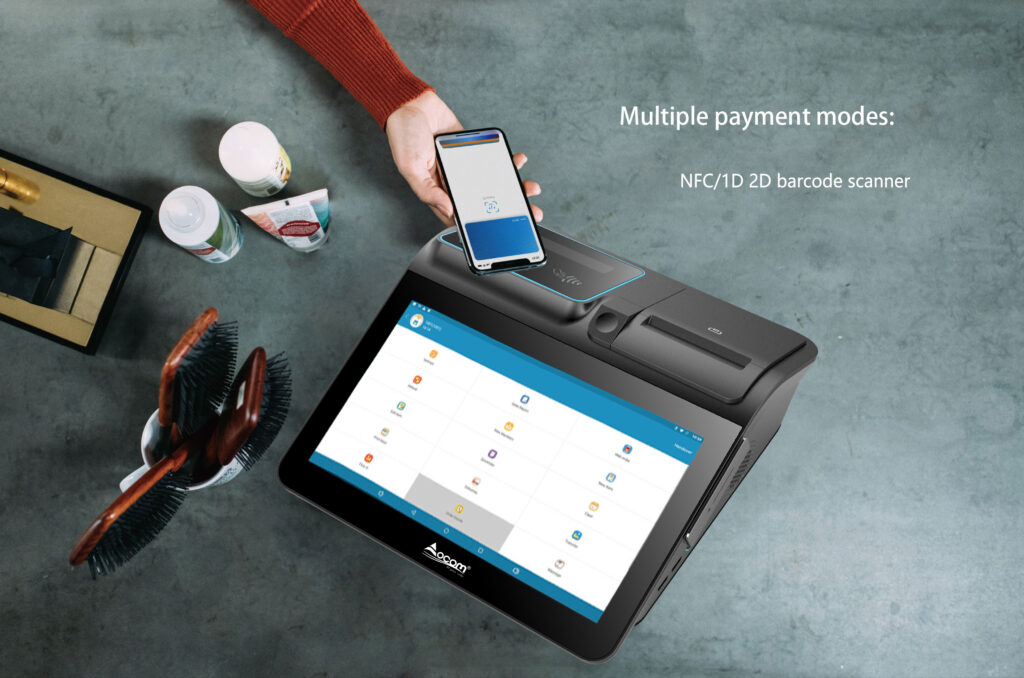

Seamless Multi-Mode Payment Processing
Advanced NFC Connectivity
Comprehensive Payment Support

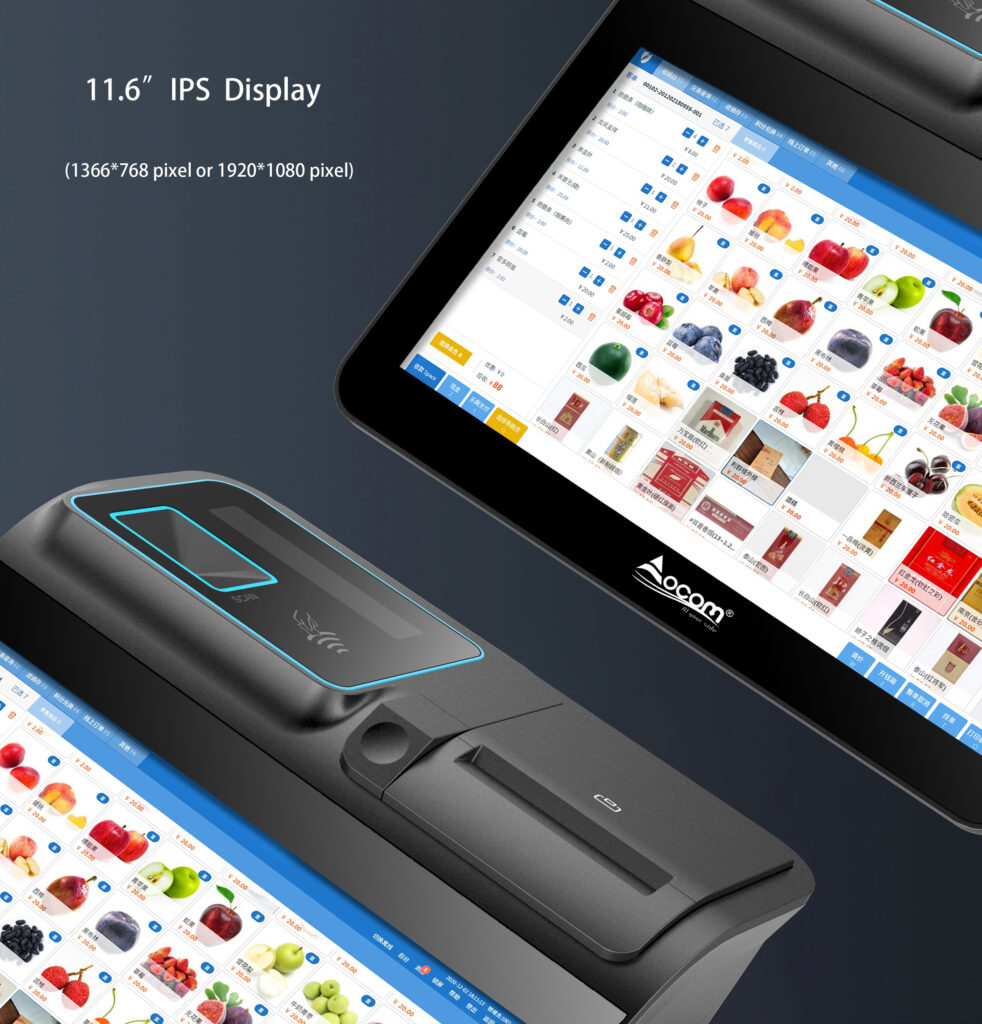

High-Definition IPS Visual Experience
11.6-Inch IPS Display
Superior Clarity
Wide Viewing Angles
Robust Technical Performance & Connectivity
Powerful Processing
Rich I/O Interfaces
Outdoor Mobility
|
Model |
POS-M1106-W |
POS-M1106-A |
|
|
Name |
11.6inch all in one Windows touch screen POS terminal |
11.6 inch all in one Android touch screen POS terminal |
|
|
Housing |
Plastic with metal combined |
||
|
Color |
Whole gray color |
||
|
Display |
|||
|
Main screen size |
11.6 inch touch screen monitor |
11.6 inch touch screen monitor |
|
|
Resolution |
1366*768, 1920*1080 for option |
1366*768, 1920*1080 for option |
|
|
Brightness |
300cd/m2 |
||
|
View angle |
Horizon: 160; Vertical: 150 |
||
|
Touch screen |
Multi-point projected G+G capacitive touch |
||
|
Performance |
|||
|
Motherboard |
Intel Celeron J4125, 2.0GHz |
RK 3568, Cortex-55, quad core 2.0GHz / RK 3288 quad core 1.8GHz CPU for option |
|
|
System Memory |
1*SO-DIMM DDR4 slot, support2400mHZ, 4GB (default) 8GB for option |
On board 2GB DDR4 |
|
|
Storage device |
Msata SSD 64GB or higer, up to 256GB |
32GB eMMC, support 32GB TF card expanded for option |
|
|
Audio |
On board Real Tek ALC662 audio chip |
On board RealTek audio chip ALC5640 |
|
|
LAN |
10M/100M or 10M/100M/1000M LAN card |
10M/100M or 10M/100M/1000M LAN card |
|
|
Operating System |
Windows10/11 |
Android 11 |
|
|
Connectivity |
|||
|
External I/O port(J4125/RK3568) |
Power button*1 |
||
|
12V DC in jack*1 |
|||
|
COM(RS232) * 1, up to 4ports |
|||
|
LAN: RJ-45*1 |
|||
|
RJ11 for Cash drawer *1 |
RJ11 for Cash drawer *2 |
||
|
VGA(15Pin D-sub)*1 |
TF card slot*1,SIM slot*1(optional for 4G LTE Module) |
||
|
USB *5 |
USB *5 |
||
|
MIC in*1 Audio out*1 |
MIC in*1, Audio out*1 |
||
|
Options |
|||
|
80mm thermal printer |
Direct thermal printing |
||
|
170mm/s printing speed |
|||
|
79.5 +/- 0.5mm paper width and printable width 72mm |
|||
|
With auto cutter function and thermal head life 100km |
|||
|
58mm thermal printer |
Direct thermal printing |
||
|
70mm/s printing speed |
|||
|
57.5 +/- 0.5mm paper width and printable width 48mm |
|||
|
thermal head life 50km |
|||
|
MSR |
ISO7811 1/2/3 Tracks, Support Dual-swiping |
||
|
NFC |
ISO14443TypeA (function for not installing 5.0 inch display) |
||
|
scanner |
1D/2D bar-code (function for not installing 5.0 inch display) |
||
|
Customer display |
2*20 VFD ( function for not installing 5.0 inch display) |
||
|
2nd display |
5.0 inch 800*600 resolution non-touch display |
||
|
Battery |
5200mAh large capacity battery (only for Android version) |
||
|
Package |
package |
||
|
Weight |
Net 2.4kg, Gross 3.1kg |
||
|
Package with foam inside |
400*390*190mm |
||
|
Operating temperature |
0 to 40 degrees centigrade |
||
|
Storage temperature |
-10 to 60 degrees centigrade |
||
|
Working humidity |
10%~80% No condensation |
||
|
Storage humidity |
10%~90% No condensation |
||
|
Accessories |
|||
|
Power adapter |
110-240V/50-60HZ AC power input, DC12V/5A output adaptor(Mark:DC15V/5A for android with battery) |
||
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
||
|
Other |
|||
|
Compliance |
CE Mark/LVD |
||
