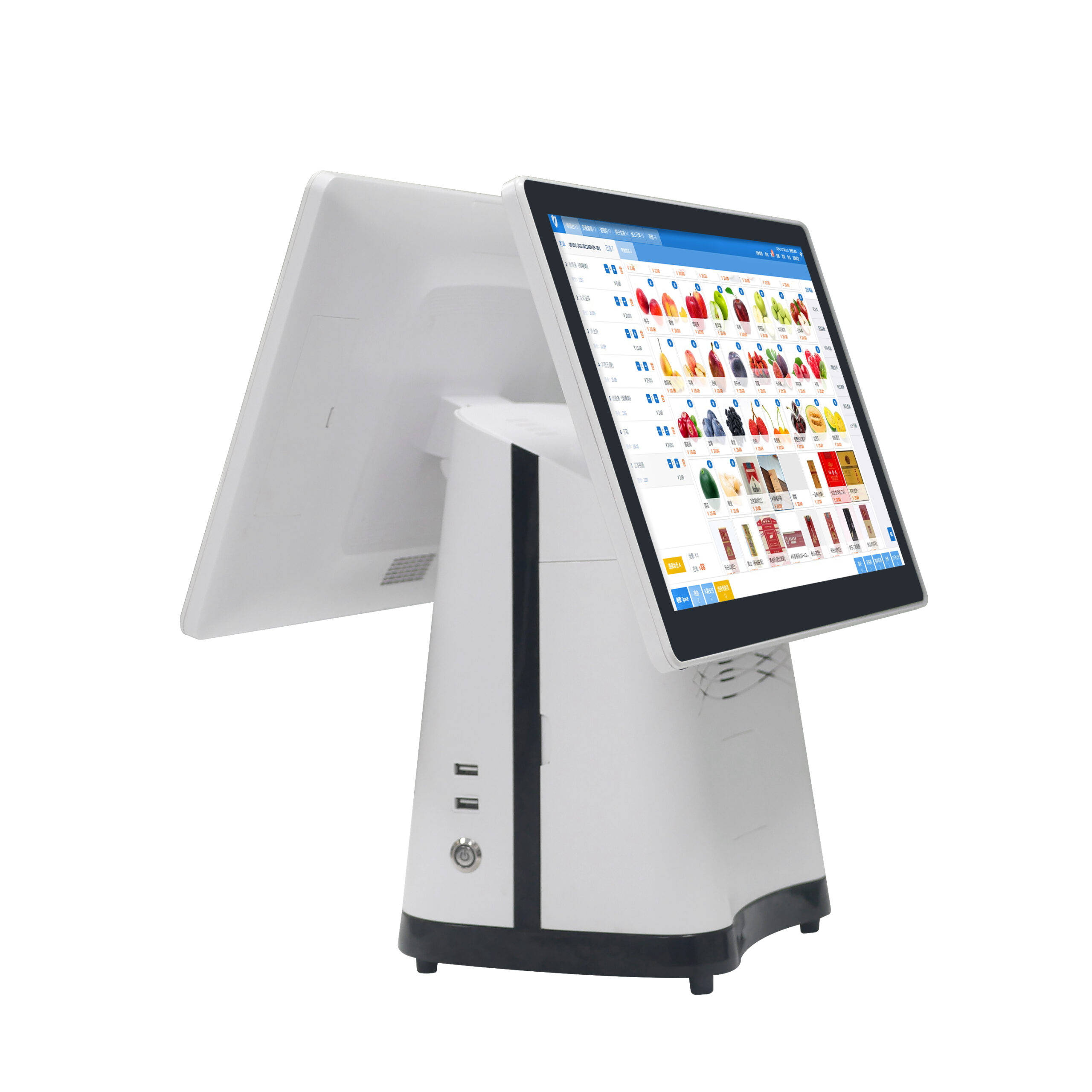

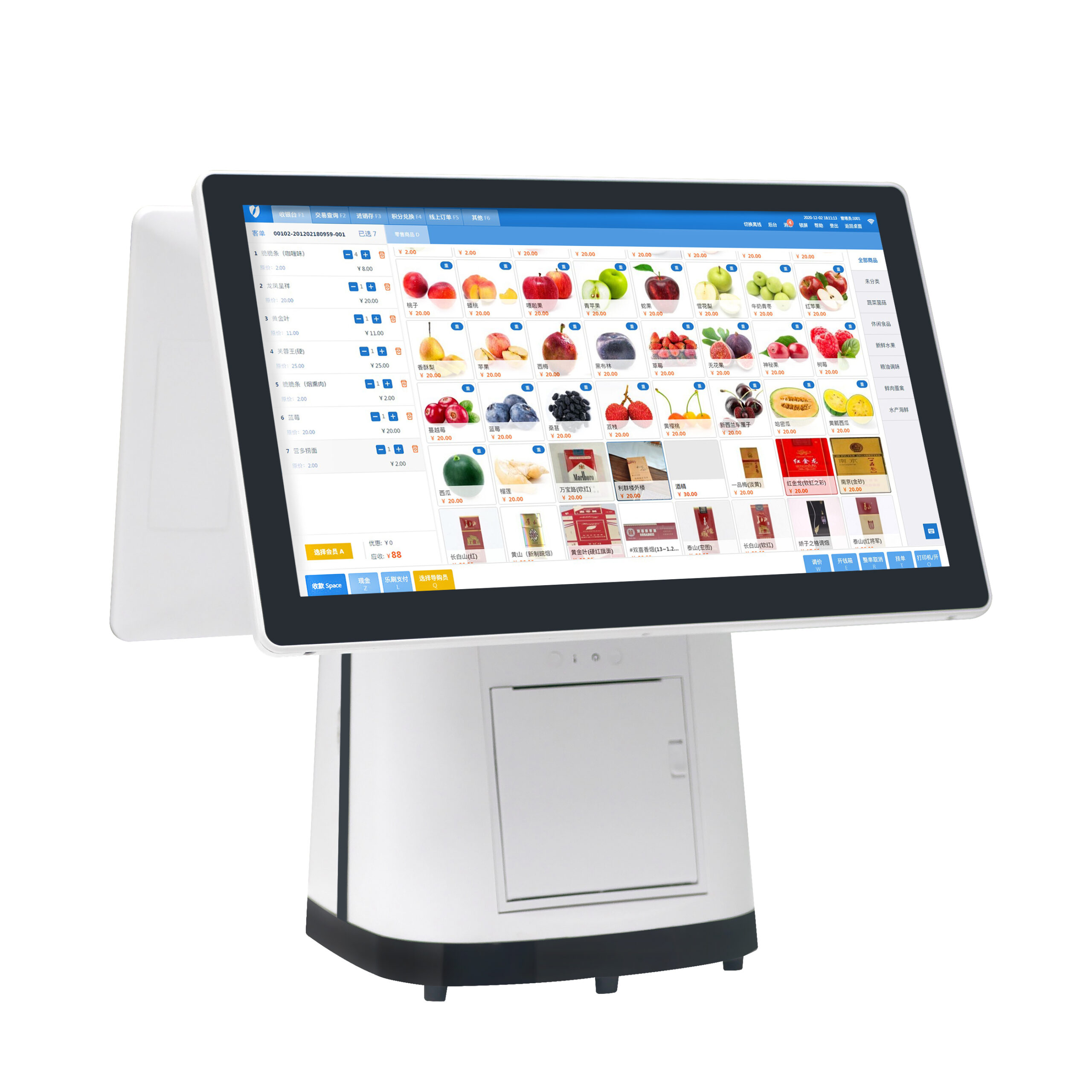

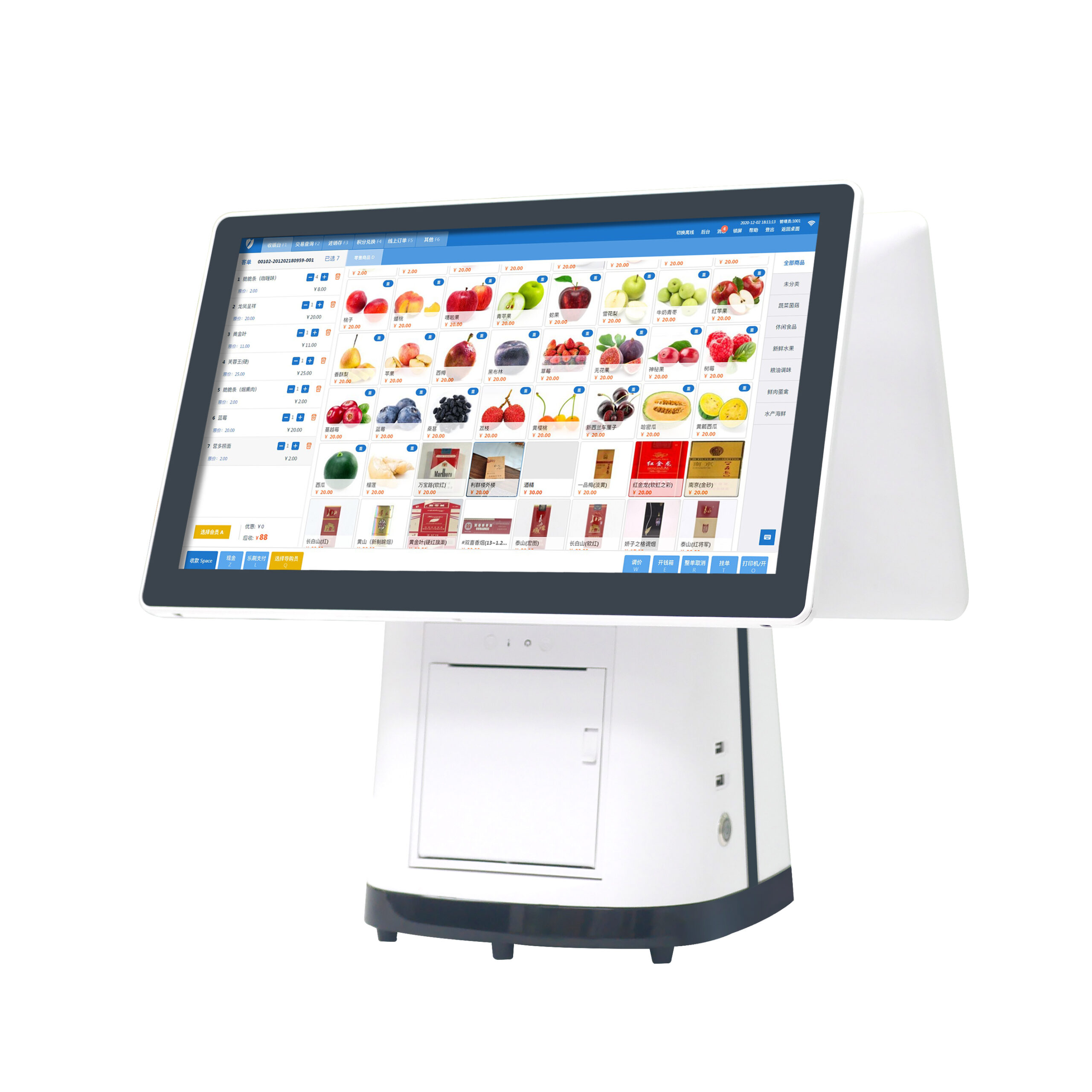

POS-L15
-
- Features:
- Intel Celeron series and intel core I3 I5 processor for option
- Hard Driver Msata SSD 64GB ,SSD 128GB and 256 GB for option
- 58mm and 80mm high speed thermal printer built in for option
- Multi-point projected capacitive touch panel
- Optional side MSR and VFD220 customer display mounted to back cover
- Ture flat and water-proof scratch-resistant surface display
- Features:

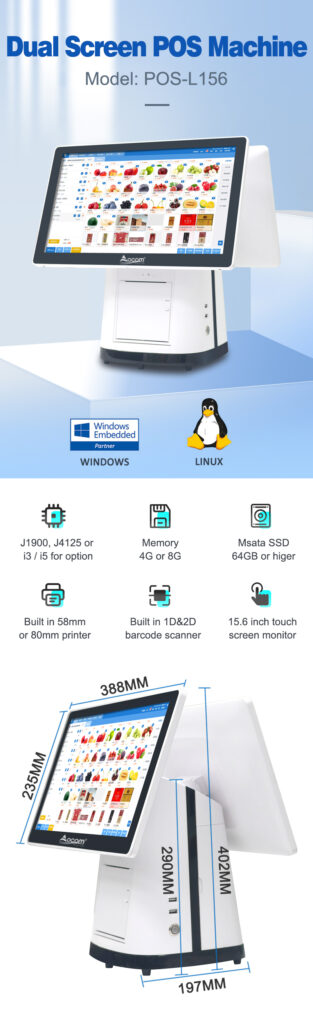

Powerful Performance & Versatile OS
Supports J1900, J4125, or i3/i5 CPUs, 4G/8G RAM, 64GB+ SSD, and dual Windows/Linux systems

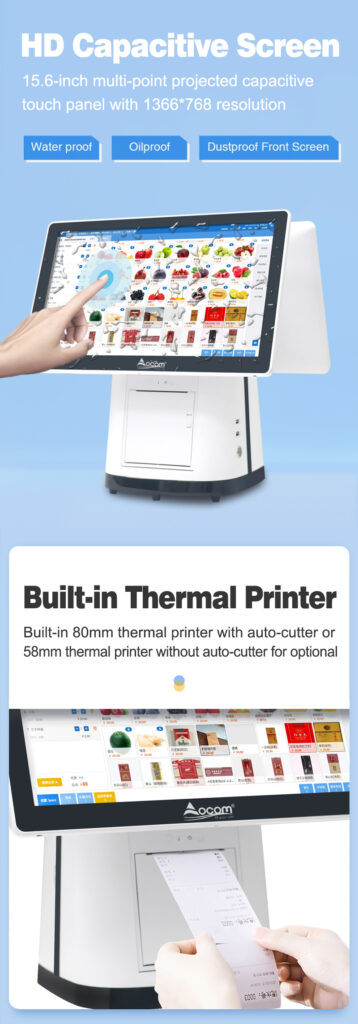

Durable HD Screen & Flexible Printing
15.6-inch water/oil/dustproof capacitive screen with 1366*768 resolution and choice of 58mm or 80mm thermal printer

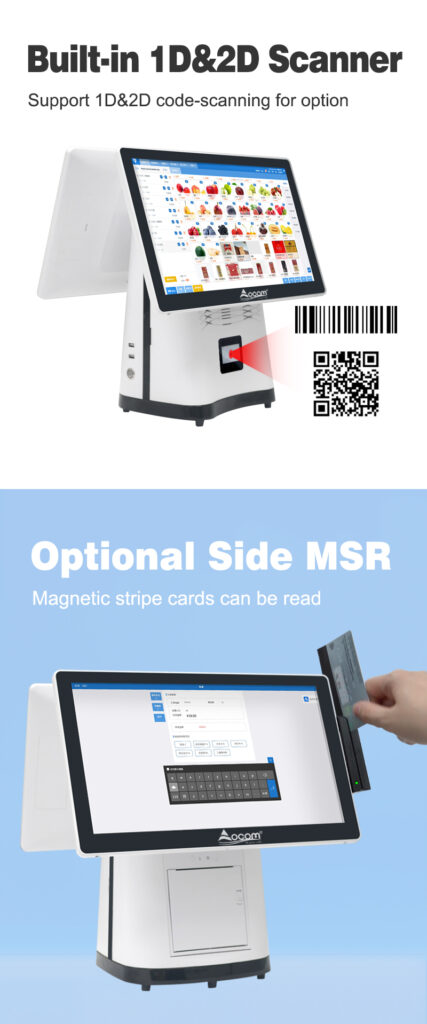

Integrated Scanning & Payment Peripherals
Optional built-in 1D&2D barcode scanner and side-mounted MSR for comprehensive transaction support

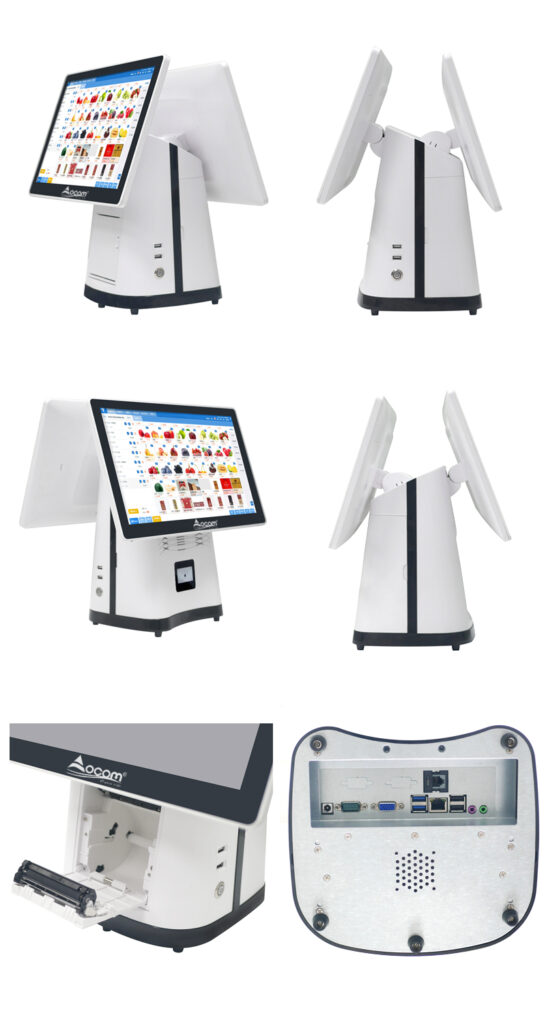

Ergonomic Structure & User-Friendly Maintenance

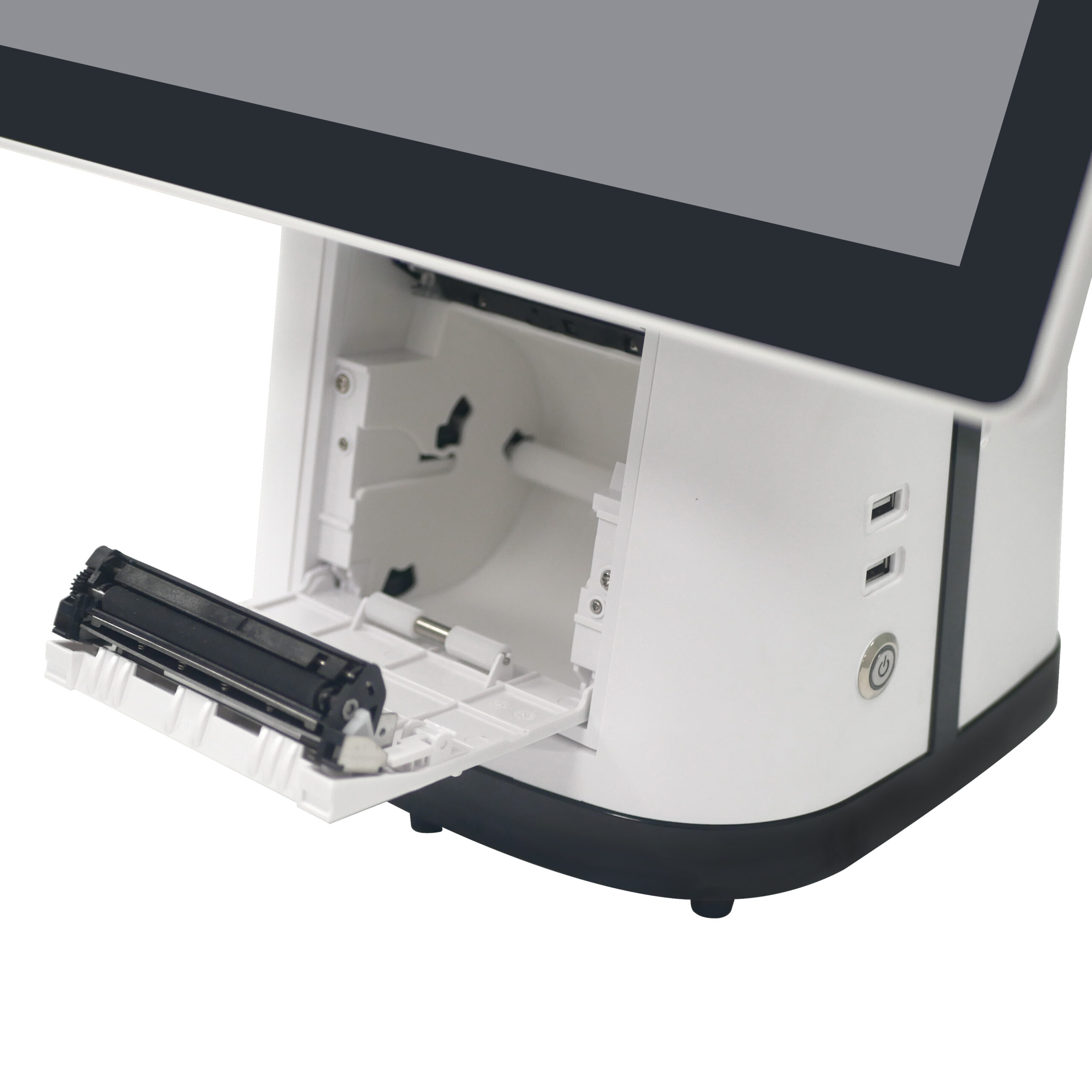

Multi-angle adjustable dual screens, easy-loading printer compartment, and organized bottom cable management
Rich Interfaces & Multi-Screen Configurations
Extensive I/O ports including RJ11/Multiple USBs and options for 11.6-inch or VFD secondary displays
|
Model |
POS-L156 |
|
Name |

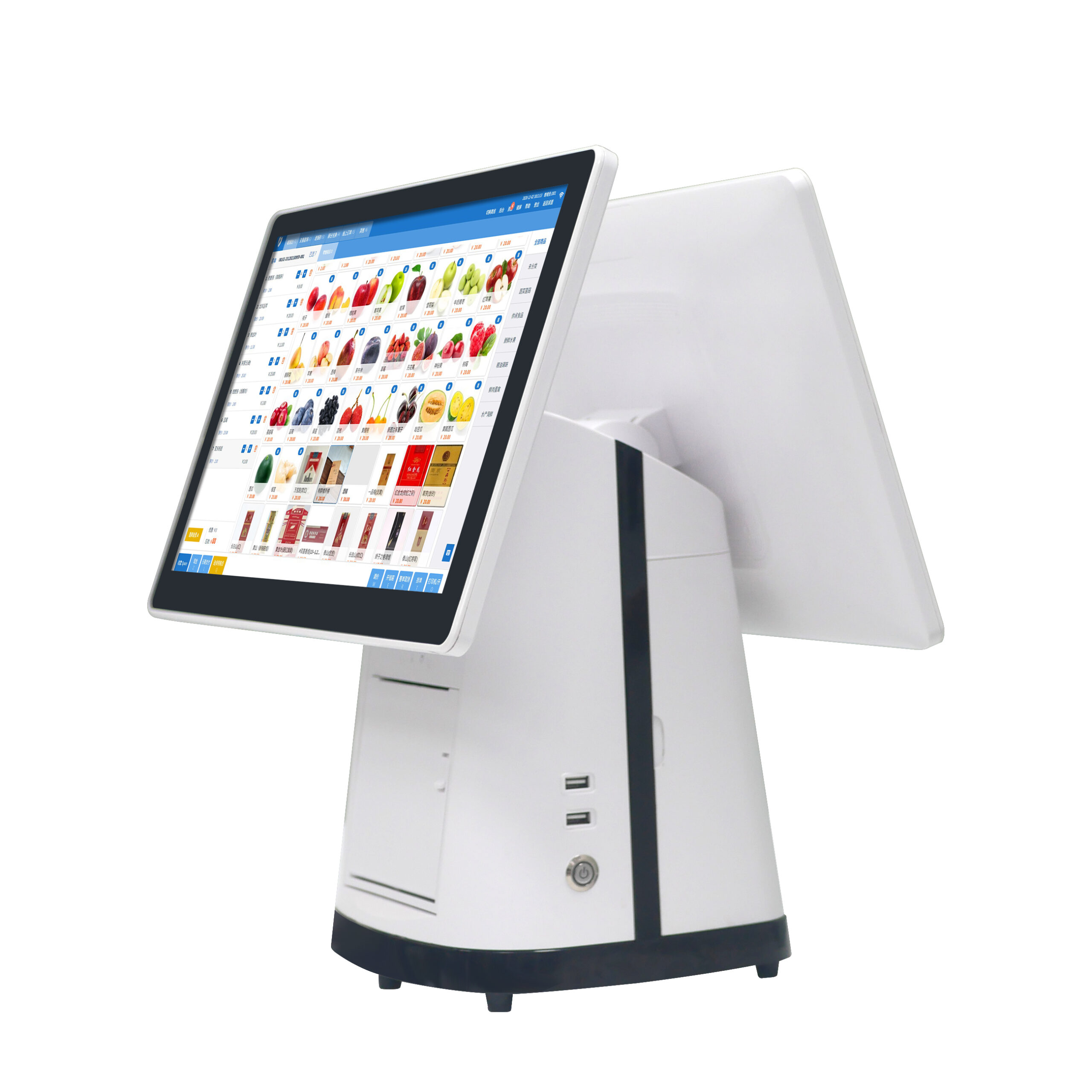

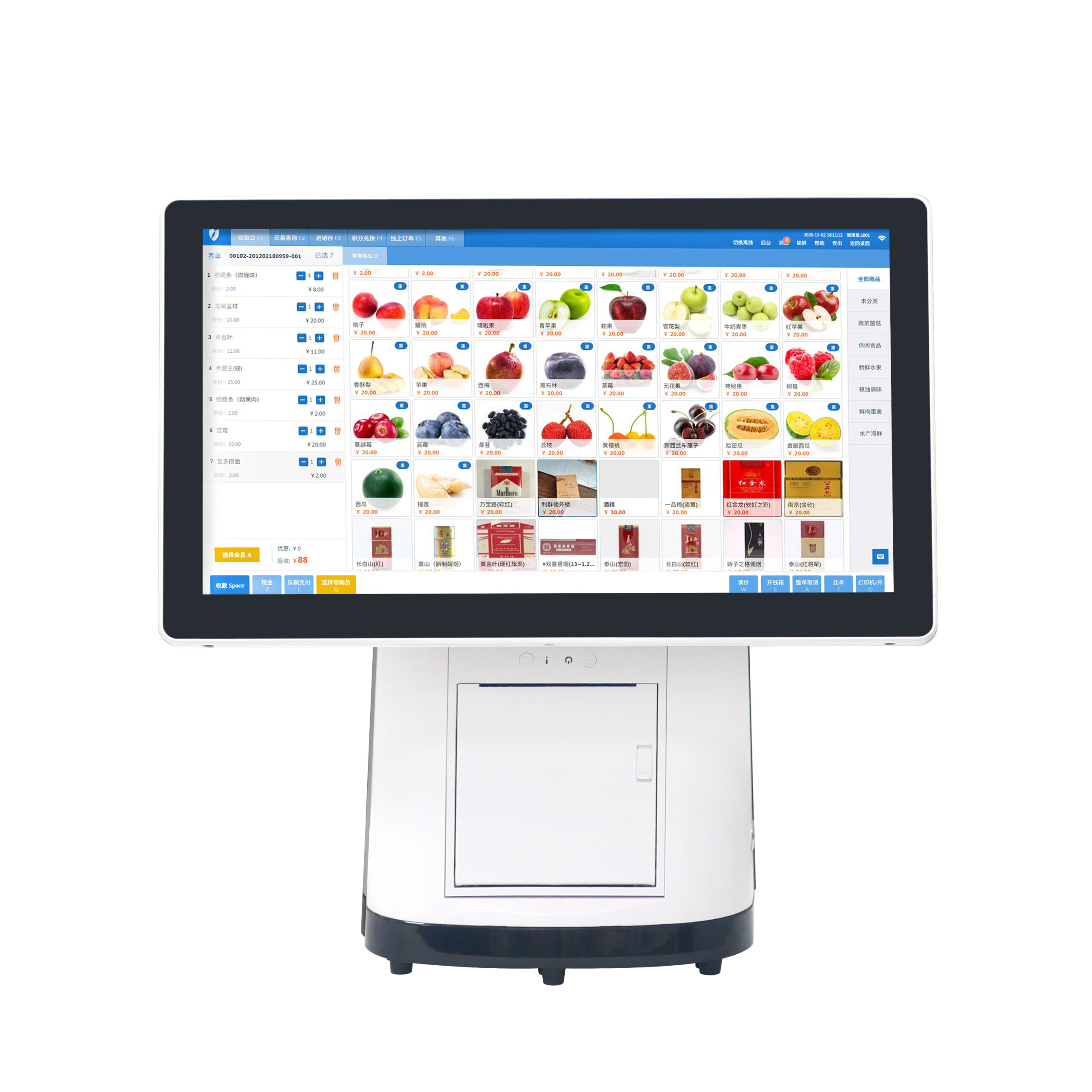

15.6 inch all in one touch screen pos terminal |
|
Housing |
plastic with metal combined |
|
Color |
whole white machine body or whole black machine body |
|
Display |
|
|
Main screen |
15.6 inch touch screen monitor |
|
Resolution |
1366*768 |
|
Brightness |
250cd/m2 |
|
View angle |
Horizon: 160; Vertical: 150 |
|
Touch screen |
Multi-point projected G+G capacitive touch |
|
Sub-display |
15.6inch display W/ or W/o touch function, resolution 1366*768 for option |
|
Customer display |
2*20 VFD mounted to back cover for option |
|
Performance |
|
|
Motherboard |
Intel Celeron J4125, 2.0GHz, or intel core I3 / I5 CPU for option |
|
System Memory |
1*SO-DIMM DDR4 slot, support 2400MHZ, 4GB(default), 8GB for option |
|
Storage device |
Msata SSD 64GB or higer, up to 256GB |
|
Audio |
On board Real Tek ALC662 audio chip |
|
LAN |
10/100Mbs, Realtek RTL8111F Lan chip built in Mini PCI-E slot,support embedded WIFI module |
|
Operating System |
Windows10/11 |
|

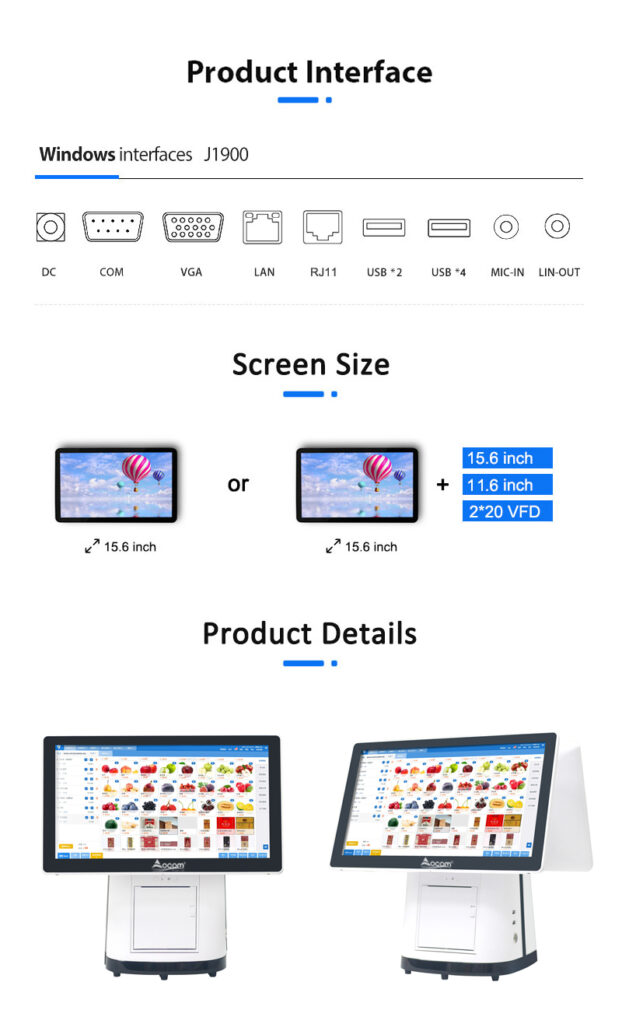

Connectivity |
|
|
External I/O port J4125 |
power button*1 |
|
12V DC in Jack*1 |
|
|
LAN: RJ-45*1, RJ11 for cash drawer |
|
|
USB*6 |
|
|
15PIN D-sub VGA *1 |
|
|
RS 232*1 |
|
|
line out*1, MIC in*1 |
|
|
Options |
|
|
80mm thermal printer |
direct thermal printing |
|
150mm/s printing speed |
|
|
79.5-/+ 0.5mm paper width and printable width 72mm |
|
|
with auto cutter function and thermal head life 50km |
|
|
58mm thermal printer |
direct thermal printing |
|
85mm/s printing speed |
|
|
57.5-/+ 0.5mm paper width and printable width 48mm |
|
|
thermal head life 50km |
|
|
MSR |
optional side MSR |
|
Web camera |
web camera mounted on top of the display for option |
|
Scanner |
support 1D&2D code-scanning for option |
|
Speaker |
4ohm/5w speakers inside for option |
|
Package |
|
|
Weight |
Net: 6.5Kg, Gross: 8.0Kg for 15.6 with15.6 dual screen with printer built in |
|
Package with foam inside |
490*310*485mm |
|
Accessories |
|
|
Power adapter |
200-240V/50-60HZ(default),110-240V/50-60HZ AC power input, DC12/5A output adaptor for W/o printer and W/ 58mm printer machine 200-240V/50-60HZ(default), 110-240V/50-60HZ DC12V/8A out put adaptor only for W/ 80mm printer machine |
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
