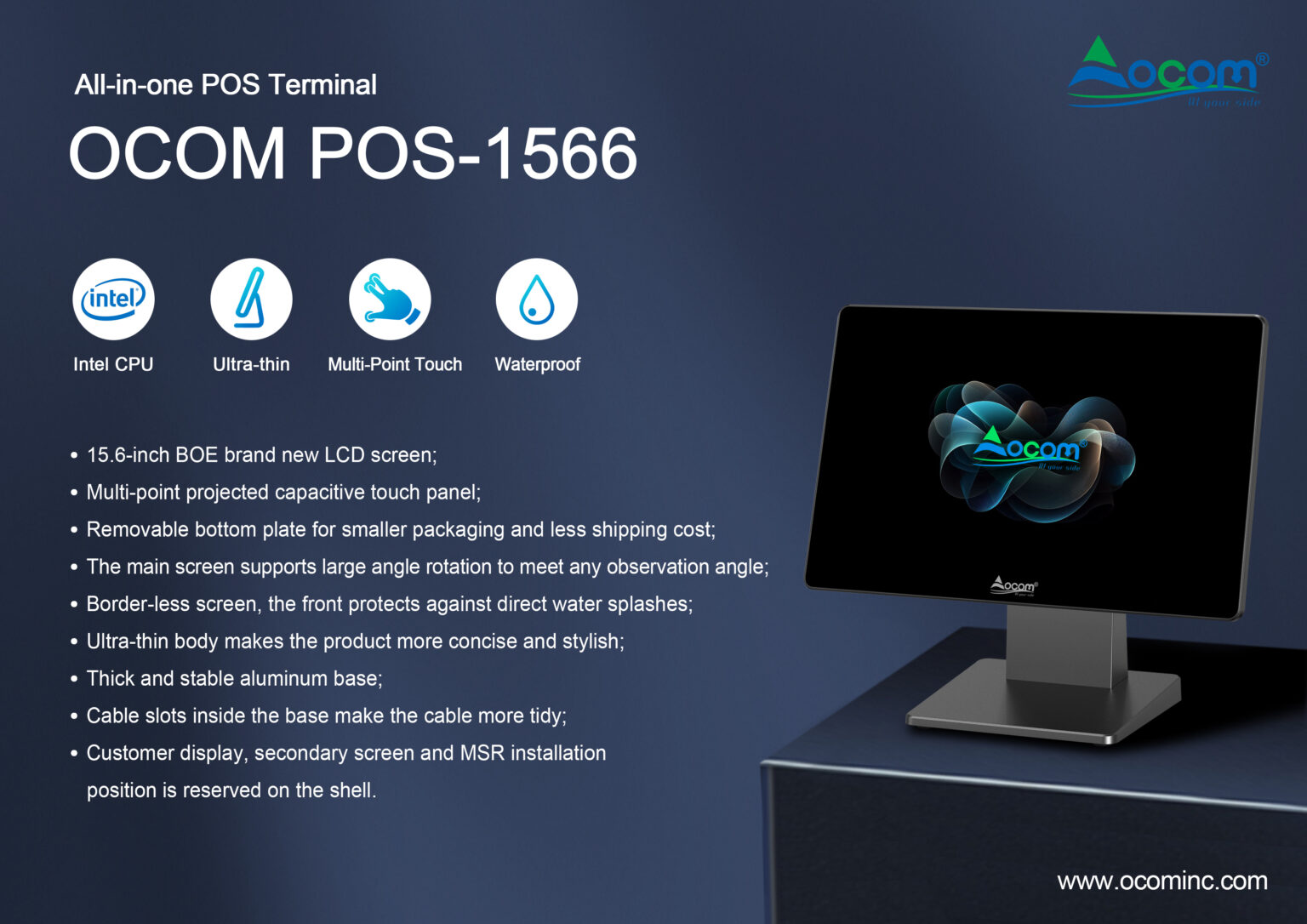

POS-1566
-
- 15.6 inch BOE brand new LCD screen
- Multi-point projected capacitive touch panel
- Removable bottom plate for smaller packaging and less shipping cost
- The main screen supports large angle rotation to meet any observation angle
- Border-less screen , the front protects against direct water splashes
- Ultra-thin body makes the product more concise and stylish
- Thick and stable aluminum base
- Cable slots inside the base make the cable more tidy
- Customer display, secondary screen and MSR installation position is reserved on the shell

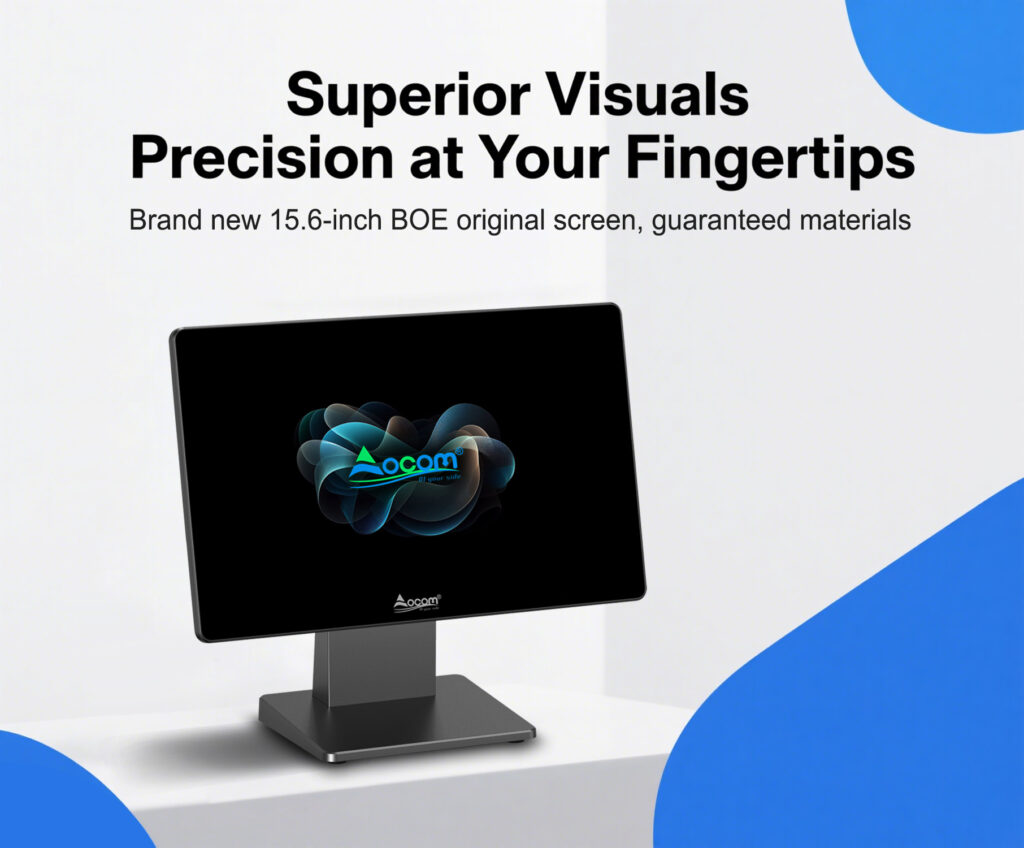

Superior Visuals, Precision at Your Fingertips
rand new 15.6-inch BOE original screen, guaranteed materials

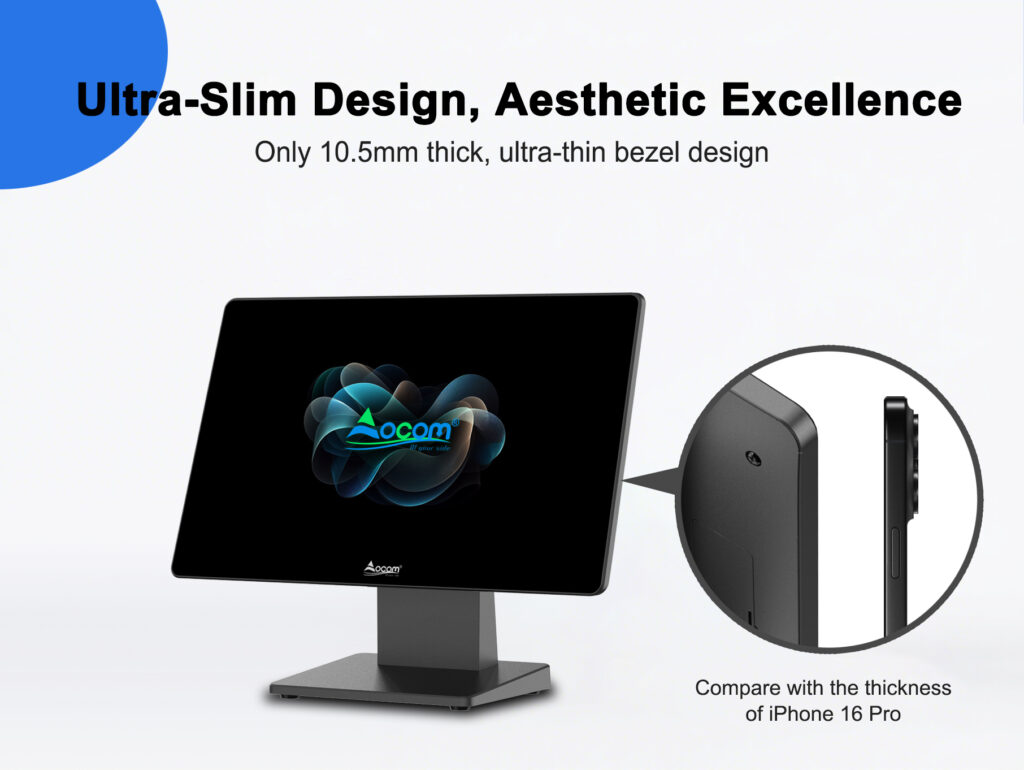

Ultra-Slim Design, Aesthetic Excellence
Only 10.5mm thick, ultra-thin bezel design
Crystal-Clear Communication, Engaging Interactions
Original 80db high-fidelity speaker included, clear information transmission

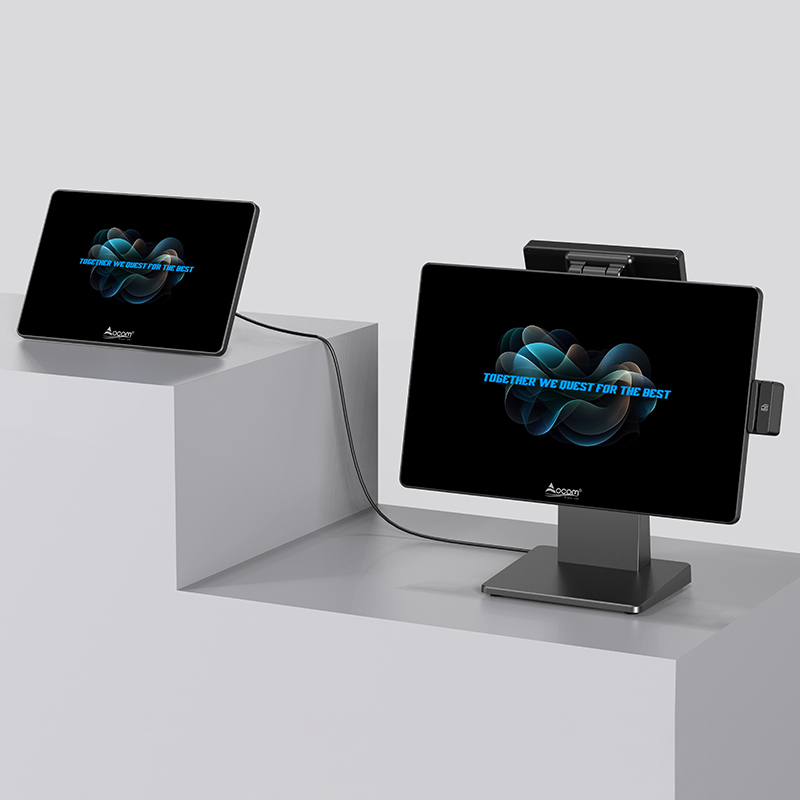

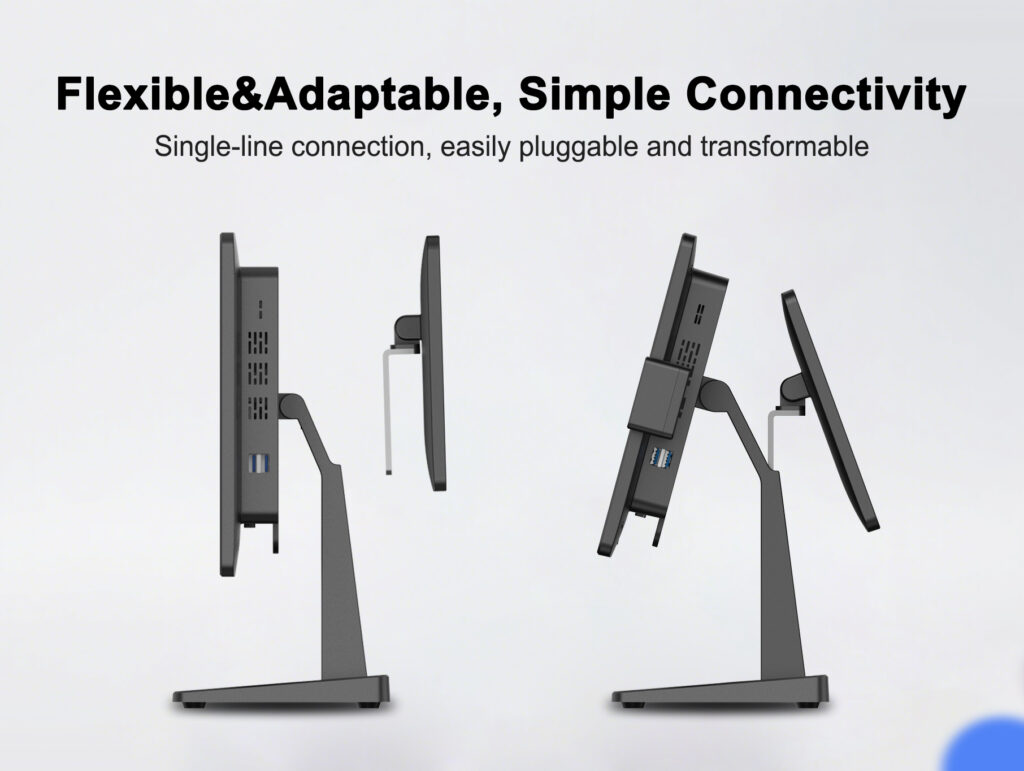

Flexible & Adaptable, Simple Connectivity
Single-line connection, easily pluggable and transformable

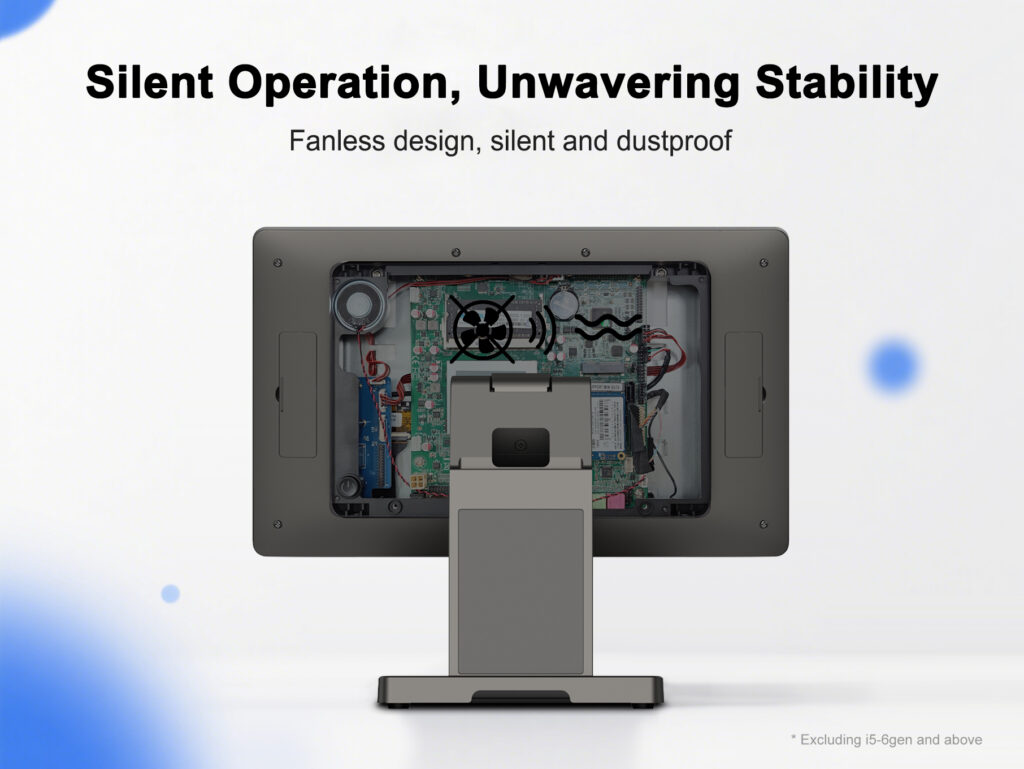

Silent Operation, Unwavering Stability
Fanless design, silent and dustproof; integrated screen and motherboard design, easy to maintain

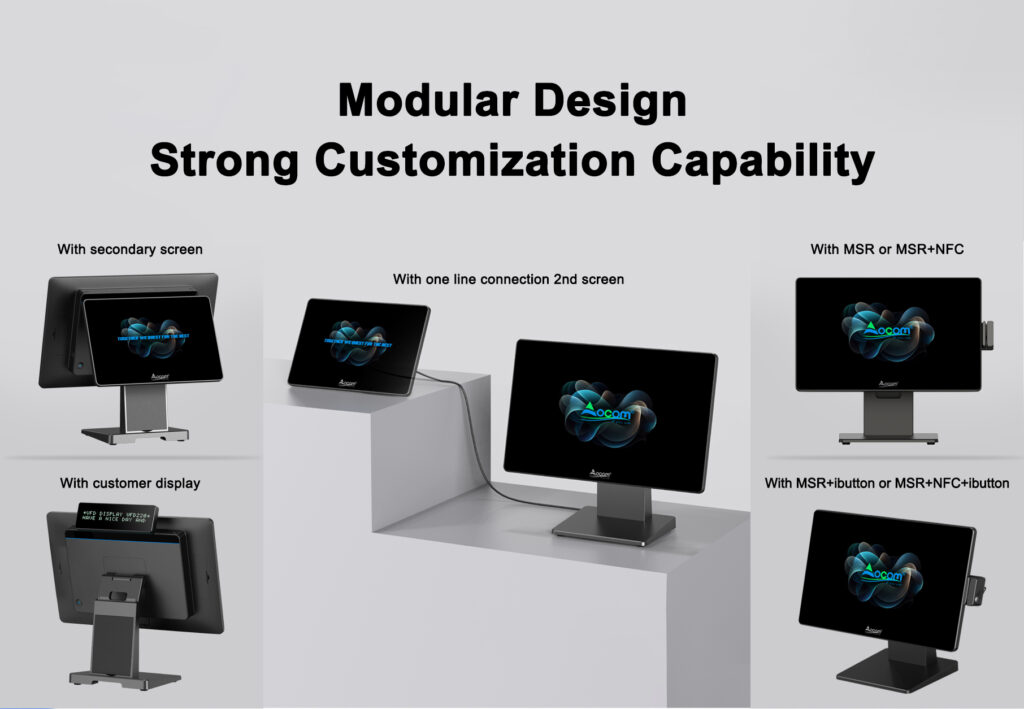

Customizable & Clutter-Free, Seamless Integration
Modular design, strong customization capability; magnetic hidden wire design, neat appearance

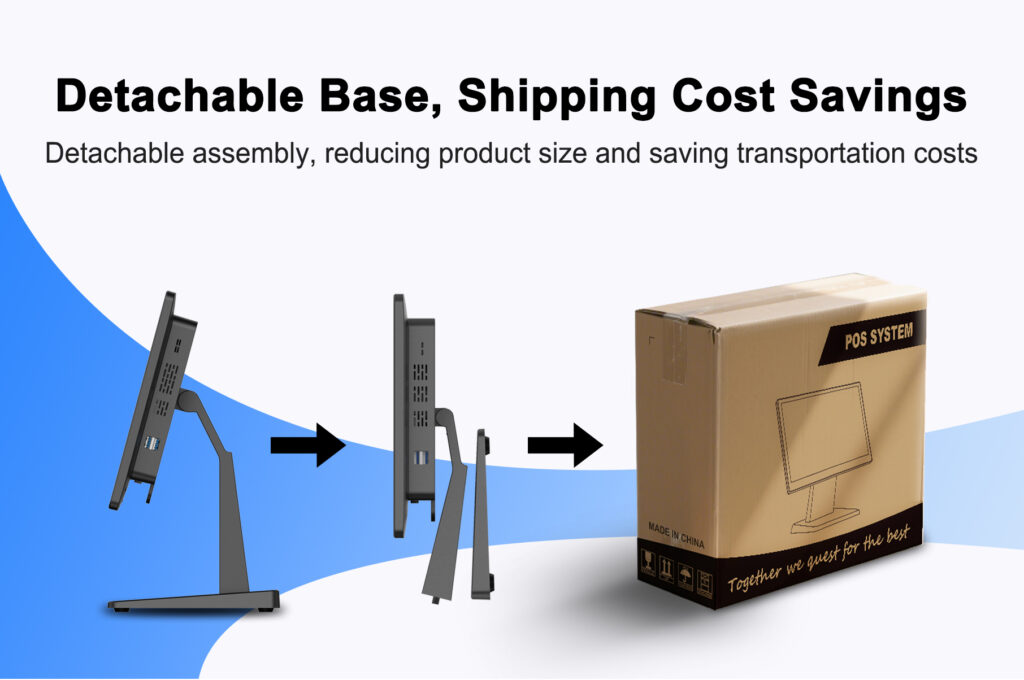

Detachable Base, Shipping Cost Saving
Detachable assembly, saves shipping costs
|
MODEL NUMBER |
POS-1566-W |
POS-1566-A |
|
SYSTEM |
||
|
Processor |
Intel core i5 4th dual core,1.9GHz,turbo boost 2.9GHz |
RK3588 8 core,2.4Ghz |
|
Intel core i5 5th dual core,2.2GHz,turbo boost 2.7GHz |
RK3576 8 core,2.2Ghz |
|
|
Intel core i5 6th dual core,2.3GHz,turbo boost 2.8GHz |
RK3568 4 core,2.0Ghz |
|
|
Intel core i5 12th 10 cores,1.3GHz,turbo boost 2.5GHz |
|
|
|
Intel celeron N5095 4 cores,2.0GHz,turbo boost 2.9GHz |
|
|
|
Memory |
8GB DDR3 Standard or 4GB DDR4 Standard |
4GB DDR4 RAM Standard,8GB for option |
|
Storage |
mSata or M.2 128GB Standard, up to 1TB |
EMMC flash 64G standard,128GB for option |
|
Lan |
100/1000Mbs, Realtek Lan chip |
10/100mbs |
|
Speaker |
4ohm/2w*1 |
|
|
OS |
Support Windows 10/11 |
Support Android 11 or Android 12 or Android 14 |
|
DISPLAY |
||
|
Type |
15.6 Inch LED Backlight Display |
|
|
Resolution |
1366*768 standard, 1920*1080 for option |
|
|
Aspect Ratio |
16:09 |
|
|
Brightness |
220 nits/250 nits depends |
|
|
Touchscreen |
Projective Capacitive Touch Screen |
|
|
I/O ports |
I5 12th |
RK3568 |
|
USB |
6*USB |
|
|
LAN |
1*RJ45 |
|
|
Display |
1*HDMI |
NA |
|
Serial |
1*COM(RS232) |
1*RJ11(RS232) |
|
Audio |
1*Line Out, 1*Mic in |
1*Line Out |
|
DC-IN |
1*DC 12V/5A |
|
|
PHYSICAL & ENVIRONMENTAL |
||
|
Operating Temperature |
Operating 0~ 40° |
|
|
Storage Temperature |
Storage -20 ~ 60° |
|
|
Cooling |
Fanless /With CPU Fan |
Fanless |
|
Weight |
Net 3.5kg(without power adaptor and power cord) |
|
|
Package with foam inside |
470*180*400mm/4.6kg |
|
|
2 in1 box |
485*365*405mm/10kg |
|
|
OPTIONS |
||
|
2nd Display |
11.6inch display W or W/o touch function, resolution 1366*768 |
|
|
VFD |
VFD,20 Columns x2 Lines |
|
|
MSR |
3 Tracks Reading |
|
|
MSR&Ibutton |
3 Tracks MSR reading and ibutton |
|
|
MSR&NFC |
3 Tracks MSR reading and NFC supported |
|
|
Wifi&Bluetooth |
Mini PCle for Wireless LAN，support 2.4G&5G WIFI,Bluetooth 5.0 Protocol |
Support 2.4G&5G and Bluetooth 5.4 |
