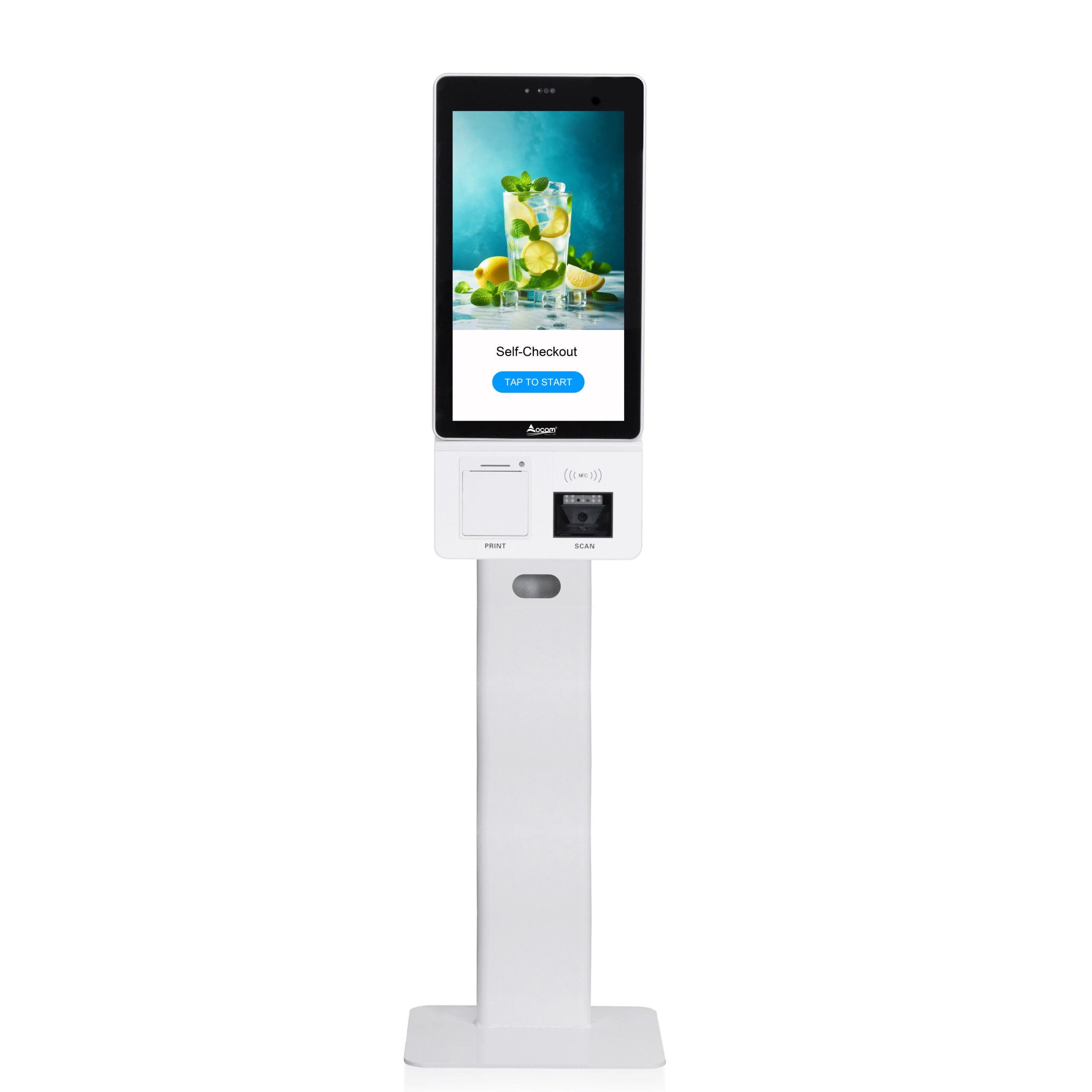

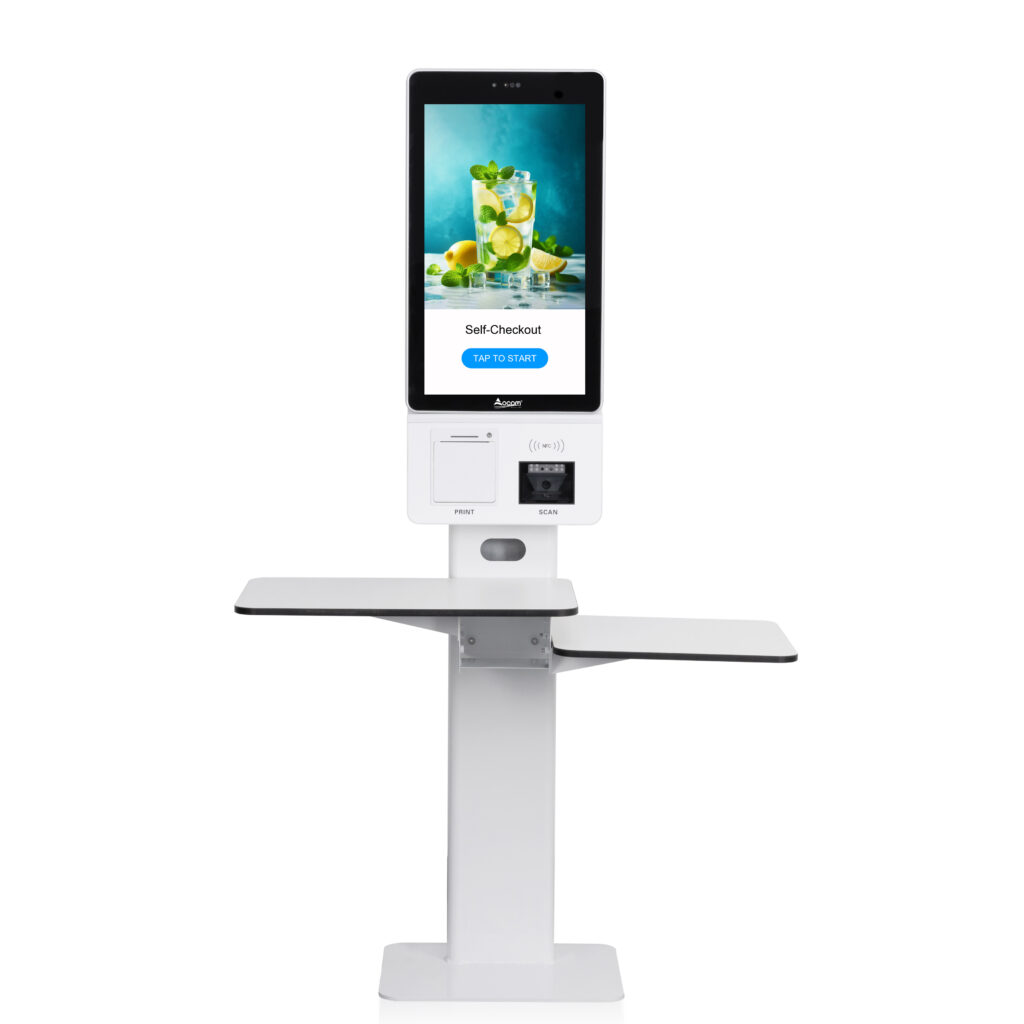

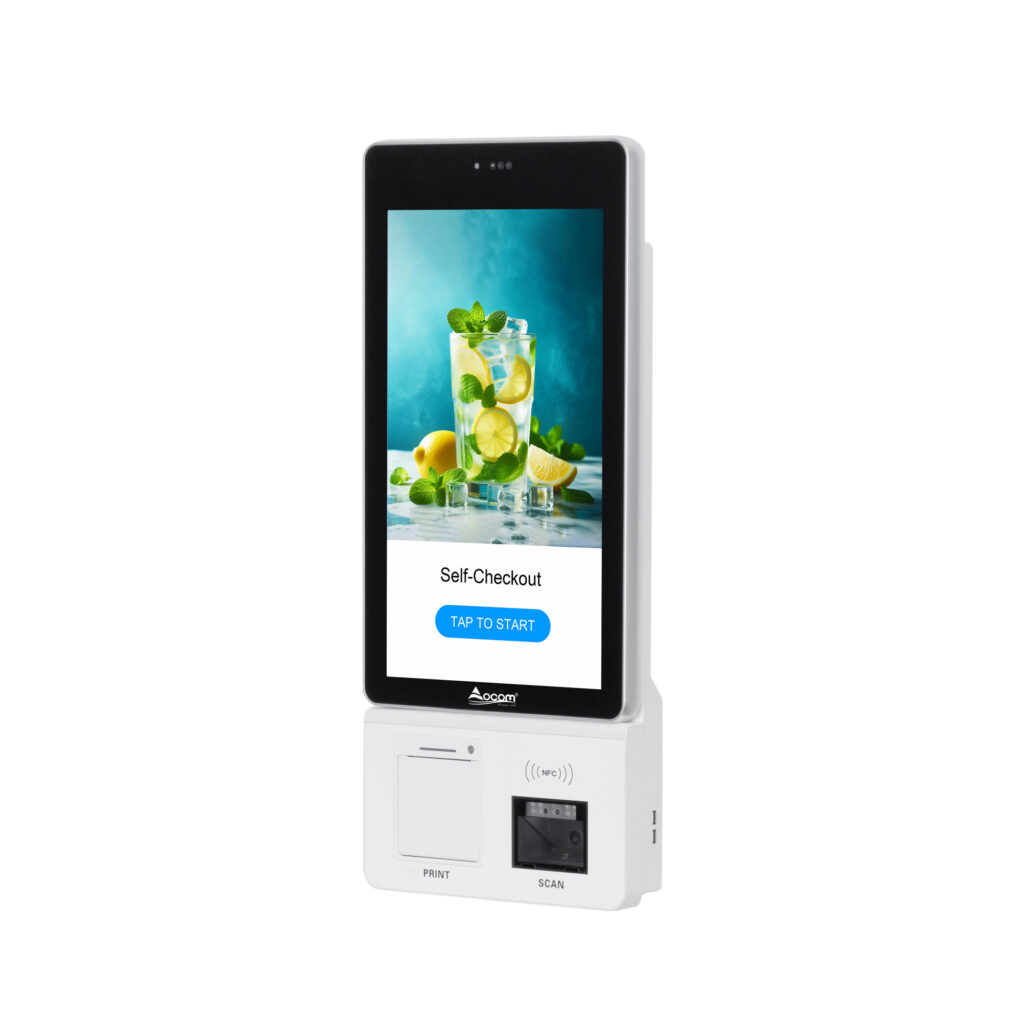

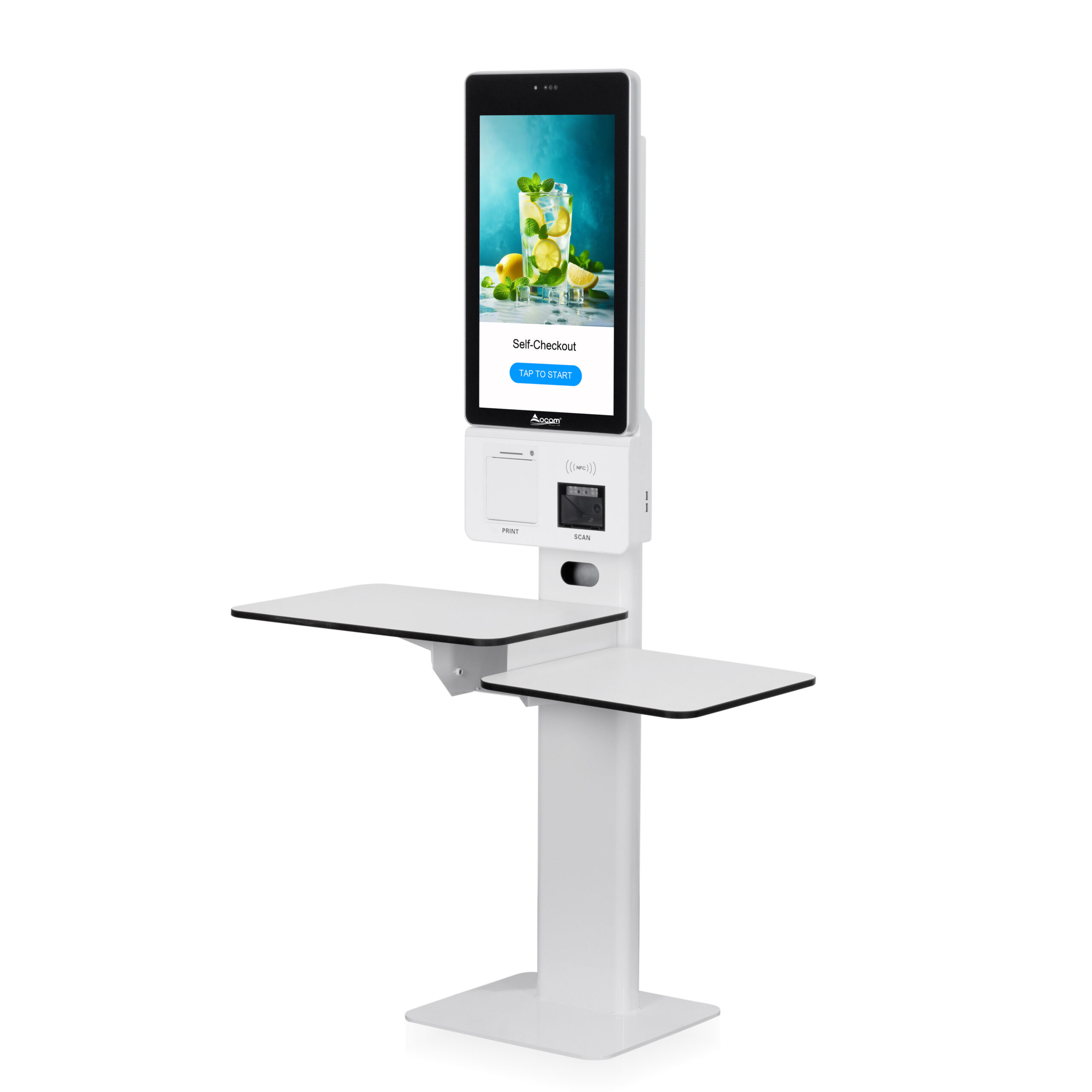

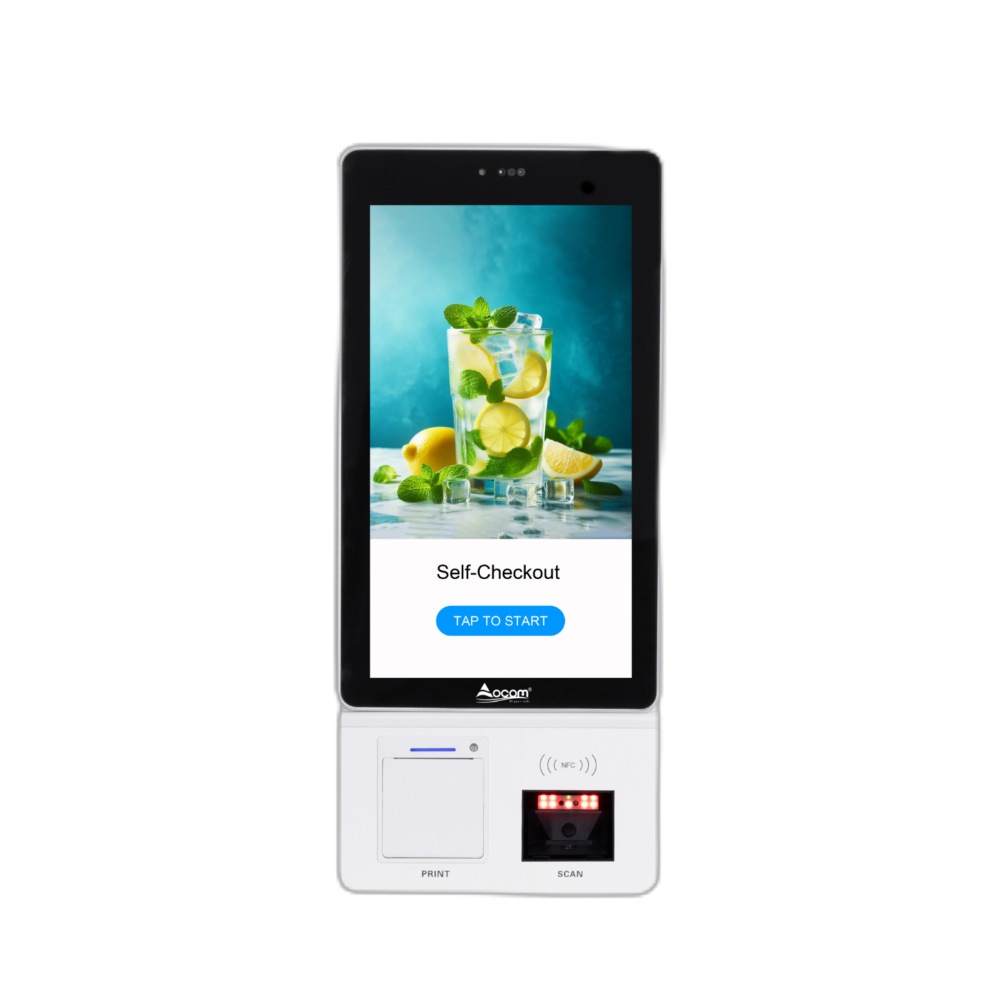

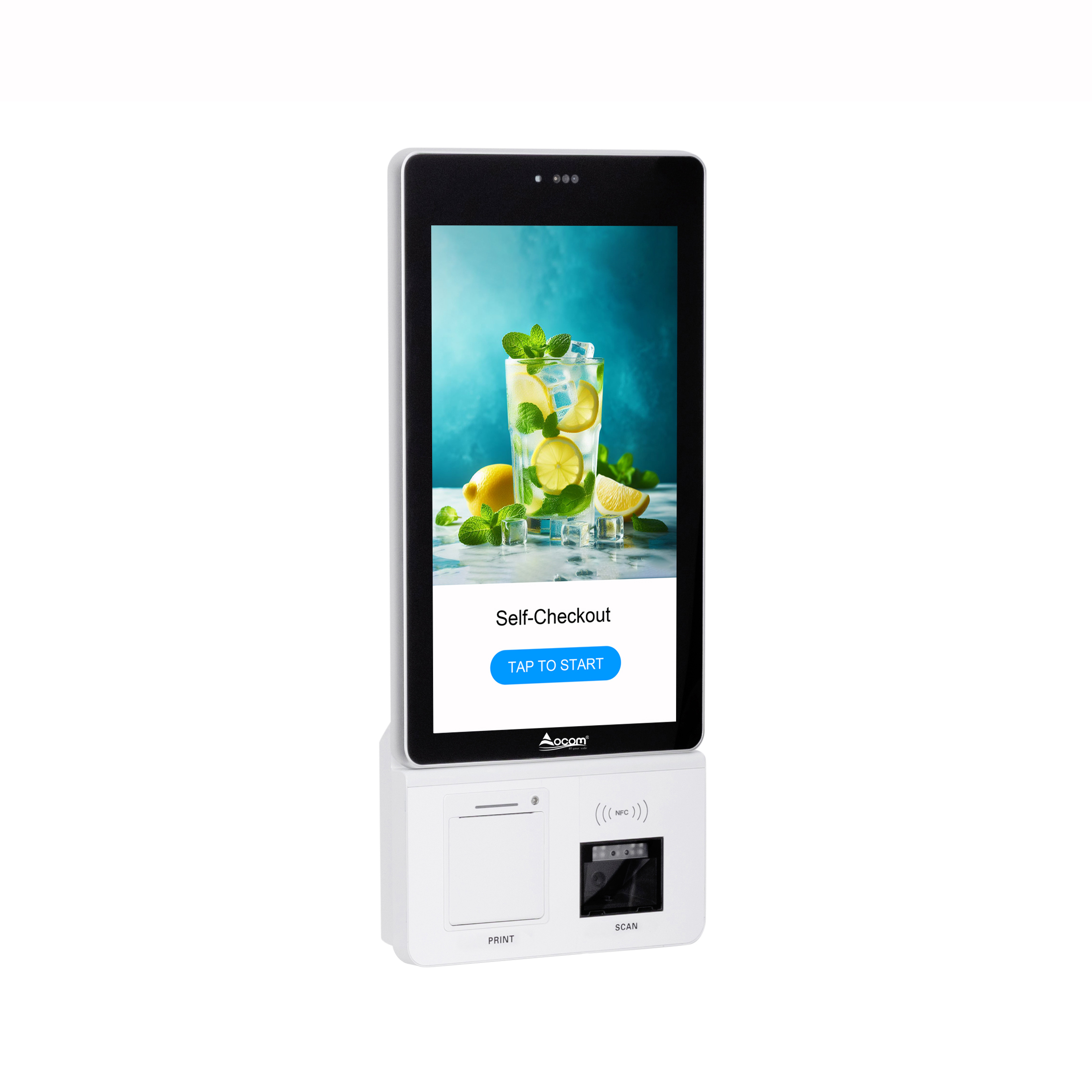

POS-K004
-
- Features:
- 5 inch 1920*1080 high resolution IPS screen
- Standard a high-sensitivity large window 1D&2D scanning platform , which can easily scan commodity codes and payment barcodes
- Standard 80MM high-speed receipt printer, including automatic cutter
- Support wall-mounting and standing alone
- Built-in 8 ohm high-power speaker, making payment tips and, advertisements louder
- Self-checkout table, NFC module, face recognition for option
- Features:
Immersive High-Definition Visuals
21.5-inch 1920*1080 high-resolution IPS screen with 10-point capacitive touch
Swift & Precise Scanning Platform
Standard high-sensitivity large window 1D&2D scanner for products and payments
Seamless High-Speed Printing
Standard 80mm high-speed receipt printer with integrated auto-cutter
Versatile Installation, Flexible Setup
Supports both independent standing and space-saving wall-mounting
High-Power Audio for Clear Alerts
Built-in 8-ohm high-power speaker for loud payment tips and advertisements
|
Model |
POS-K004-W |
POS-K004-A |
|
|
Name |
21.5 inch all in one touch screen kiosk |
||
|
Housing |
Plastic with metal combined |
||
|
Color |
Whole white color |
||
|
Display |
|||
|
Main screen size |
21.5 inch touch screen monitor |
21.5 inch touch screen monitor |
|
|
Resolution |
1920*1080 |
1920*1080 |
|
|
Color brightness |
250cd/m2 |
||
|
View angle |
Horizon: 178; Vertical: 178 |
||
|
Touch screen |
10-point projected G+G capacitive touch |
||
|
Performance |
|||
|
Motherboard |
Intel Celeron J4125, 2.0GHz or Intel core I3 / I5 4th CPU for option |
RK 3568 quad core, 2.0GHz CPU |
|
|
System Memory |
1*SO-DIMM DDR4slot, support2400mHZ,4GB |
On board 2GB DDR4 |
|
|
Storage device |
Msata SSD 64GB |
32GB eMMC |
|
|
Audio |
On board Real Tek audio |
On board Real Tek audio |
|
|
LAN |
10/100/1000Mbs, Realtek RTL8111F Lan chip |
10M/100M/1000Mbs, RTL8201F |
|
|
WIFI |
Support 802.11 b/g |
Support 802.11 b/g |
|
|
Speaker |
Built in 8ohm/10watt speakers |
||
|
Camera |
Face recognition for payment (option function) |
||
|
Operating System |
Windows10/11 |
Android 11 |
|
|
Connectivity |
|||
|
External I/O port(J4125/RK3568) |
Power switch*1 for machine, power button*1 for POS motherboard |
||
|
100V-240V 50HZ/60HZ AC power Socket*1 |
|||
|
USB*2 |
|||
|
LAN:RJ-45*1 |
|||
|
Lock*1 for machine security |
|||
|
Scanning platform |
package |
||
|
Light Source |
Illumination:617nm red LED |
||
|
Power supply |
5V DC |
||
|
Support 1D |
UPC,EAN, Code128, Code 39,Code 93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI Plessey,GS1 DataBar,China Postal,Korean Postal, etc…. |
||
|
Support 2D |
PDF417,Micro PDF417,Data Matrix,Maxicode,QR Code,Micro QR,Aztec,Hanxin, etc…… |
||
|
Barcode precision |
4 mil code39 |
||
|
Barcode Sensitivity |
Pitch:±60°@ 0°Roll and 0°Skew Roll:±360°@ 0°Pitchand0°Skew Skew:±65°@ 0°Roll and 0°Pitch |
||
|
Prompt Mode |
Buzzer |
||
|
Interface |
USB |
||
|
Printer |
|||
|
80mm thermal printer |
Direct thermal printing |
||
|
150mm/s printing speed |
|||
|
79.5-/+ 0.5mm paper width and printable width 72mm |
|||
|
Auto cutter function |
|||
|
Power DC 24V |
|||
|
Resolution 203DPI |
|||
|
Package |
|||
|
Host POS weight |
15kg |
||
|
Host POS box weight |
20kg |
||
|
Host POS box size |
960*250*490mm |
||
|
Stand (stand+table)carton size |
1350*460*500mm |
||
|
Stand weight |
16.7kg |
||
|
Stand box weight |
22.5kg |
||
|
Stand+metal plate weight |
30.7kg |
||
|
Stand+metal plate box weight |
36.2kg |
||
|
Operating temperature |
0 to 40 degrees centigrade |
||
|
Storage temperature |
-10 to 60 degrees centigrade |
||
|
Working humidity |
10%~80% No condensation |
||
|
Storage humidity |
10%~90% No condensation |
||
|
Accessories |
|||
|
Power cable |
Power cable plug compatible with USA /EU / UK etc and customized available |
||
|
Stand and table |
Stand and table for option |
||
