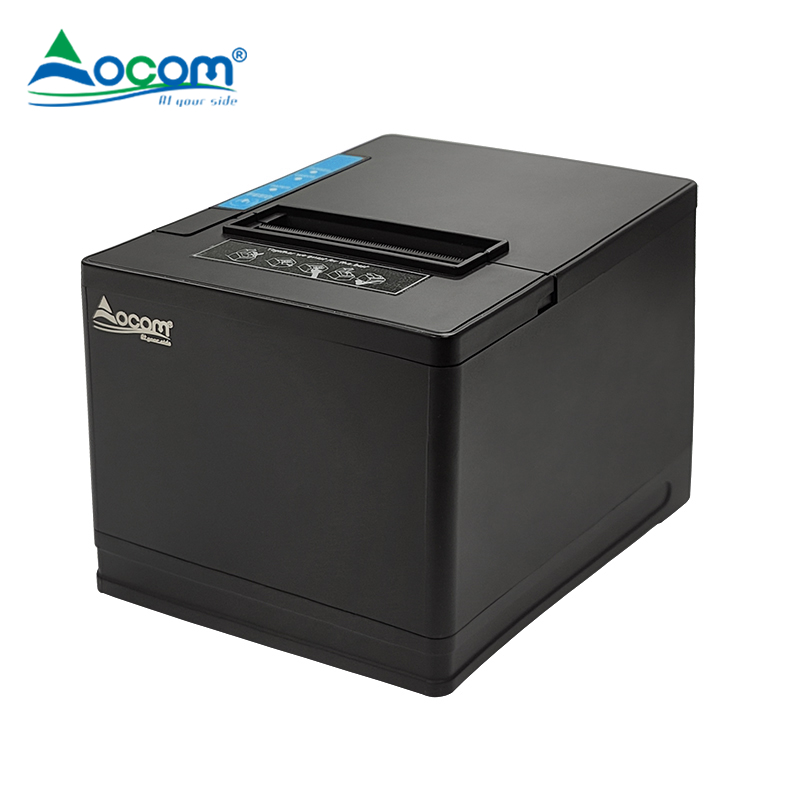

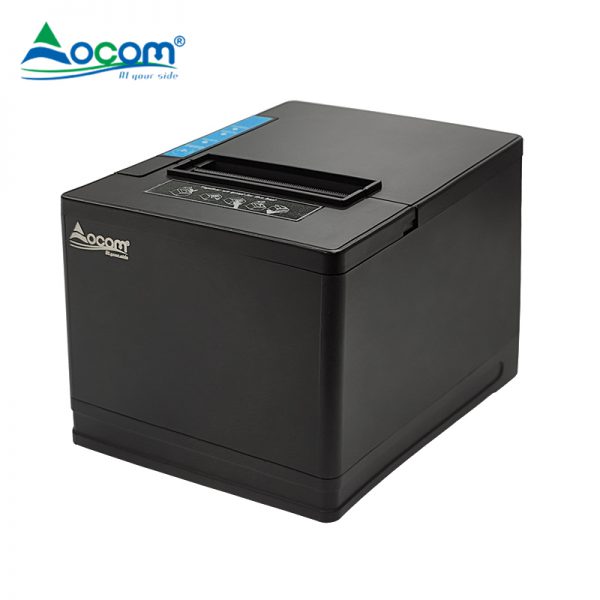

80mm Thermal Receipt Printer With Auto Cutter
1. Compact design, fashionable appearance,easy to load paper
2. Supports multi 1D barcode and QR code printing
3. Support printer status monitoring function
4. Support printing queuing ticket function
5. Support different interface combination
6. Up to 300mm/s high speed,low noise printing
7. 48 or 80mm adjustable paper separator for option
8. 150KM long life printer head
Supporting wall mounting
Description
| General | |||
| Model | OCPP-80S | ||
| Name | 80mm desktop thermal printer with auto cutter | ||
| Color | Black | ||
| Optional interface | USB/USB+Lan/USB+BT/ USB+WiFi/URL+WIFI/URL+BT | ||
| Power supply | Input：AC 100V-240V,50-60Hz,Output：DC 24V/2.5A | ||
| Cash drawer | DC 24V/1A | ||
| Printer head lifespan | 150KM | ||
| Cutter | Auto cutter | ||
| Sensors | Paper out, cover open, cutter jam,paper jam and black mark detection(Optional) | ||
| Accessories | Data cable,power adaptor,power cord,paper roller,CD,manual, Paper separator(optional) | ||
| OS supporting | Compatible with iOS/ Android/ Windows/Linux | ||
| Safety standards | CE ,FCC,Rohs etc | ||
| Printing capability | |||
| Printing method | Direct thermal line | ||
| Resolution | 203 DPI | ||
| Printing speed | 200mm/s (U/UR ) 260mm/s (UL/U+BT/ U+WIFI) 300mm/s (URL/ URL+BT/ URL+WIFI) | ||
| Print width | 72mm | ||
| Graphics printing | Supports bitmap download and print ( each bitmap size Max.20K) | ||
| Printing Command | Compatible with ESC/POS | ||
| Barcode and character | |||
| Barcode | 1D barcode: UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8）/CODE39/ITF/ CODABAR/CODE93/CODE128 2D barcode：QR CODE | ||
| Character size | ANK character, Font: A: 12*24dots, 1.5(W)*3.0(H) mm FontB:9*17dots ,1.1(W)*2.1(H)mm Simplified/Traditional: 24*24dots, 3.0(W)*3.0(H)mm | ||
| support | ||
| User-defined language | PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) | ||
| Media | |||
| Paper type | Thermal roll paper | ||
| Paper width | 48mm/52mm/56mm/64mm/68mm/76mm/80mm (optional) | ||
| Paper Thickness | 0.06~0.08mm | ||
| Paper roll diameter | 80mm Max | ||
| Paper separator | support | ||
| Physical | |||
| Dimension | 180*142*136mm | ||
| Weight | 1.65kg | ||
| Package box | 228*215*165mm | ||
| 8 in carton | 475*445*358mm/15.65kg | ||
| Environment | |||
| Working temperature& humidity | 0 to 45 degrees centigrade, 10%~80% No condensation | ||
| Storage temperature& humidity | -20 to 60 degrees centigrade , 10%~90% No condensation |
